Specifications
| Manufacturer Part Number | 33-68176-C-K07 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DS100C |
| Family Series | Meltric Plugs & Receptacles, DS100c Series |
| Connection Type | Inlet |
| Current Rating | 100 A |
| Voltage | 125 V, 250 V |
| Frequency | 60 Hz |
| Auxiliary Contact | None |
| Wire Size Range | 2 AWG, 10 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP54 |
| Terminal Type | Screw |
| Color Code | Orange |
| NEMA Rating | NEMA 3R |
| Approvals | cCSAus, UL |
| H x W x D | 3.60 " x 3.75 " x 3.80 " |
| Net Weight | 0.815 lbs |
| Gross Weight | 0.95 lbs |
Description
Plugs & Receptacles, DS100C Series
Item #
33-68176-C-K07

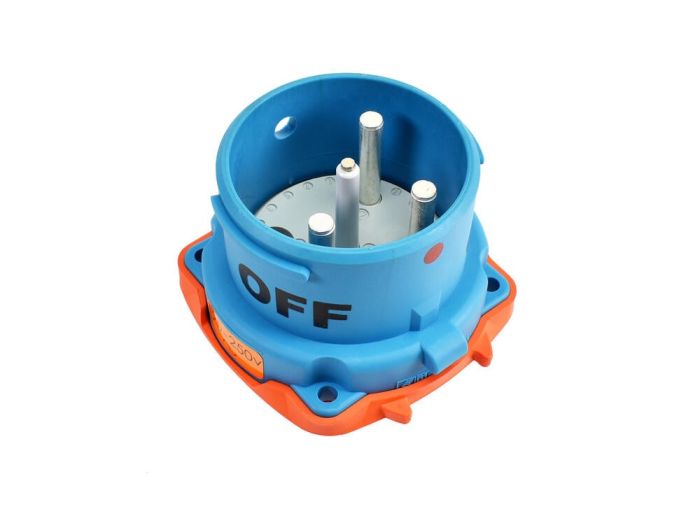

Inlet, 100A, 125/250V, 2P+N+G, Poly,
DS100C Series Information
- 65kA to 100kA Short‑Circuit Rated
- Metal or Poly Construction
- Up to 5 Auxiliary Contacts
- NEMA 3R IP54/IP55
- 120~600 VAC Versions
- UL & CSA Switch Rated
- 100 Amps
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Series | Connection Type | Price | Action |
|---|---|---|---|---|---|---|---|
|
37-68176-C-K07 | Inlet, 100A, 125/250V, 2P+N+G, Metal, DS100C | 125 VAC, 250 VAC | DS100C | Inlet |
Price unavailable
|
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Voltage | Series | Connection Type | Price | Action |
|---|---|---|---|---|---|---|---|
|
|
31-6A226 | Inlet Cap, Spring-Loaded |
Price unavailable
|
||||
|
33-64176-C-K07 | Receptacle, 100A, 125/250V, 2P+N+G, Poly, DS100C | 125 V, 250 V | DS100C | Receptacle |
Price unavailable
|
|
|
DS6MC | Padlockable Cap, For Use with Male Devices Only |
Price unavailable
|
