Specifications
| Manufacturer Part Number | 33-68237-C-K16 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DS100C |
| Family Series | Meltric Plugs & Receptacles, DS100c Series |
| Connection Type | Inlet |
| Current Rating | 100 A |
| Voltage | 120 V, 208 V |
| Frequency | 60 Hz |
| Auxiliary Contact | None |
| Wire Size Range | 2 AWG, 10 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP54 |
| Terminal Type | Screw |
| Color Code | Blue |
| NEMA Rating | NEMA 3R |
| Approvals | cCSAus, UL |
| H x W x D | 3.95 " x 4.25 " x 4.55 " |
| Net Weight | 1.05 lbs |
| Gross Weight | 1.05 lbs |
Description
Plugs & Receptacles, DS100C Series
Item #
33-68237-C-K16

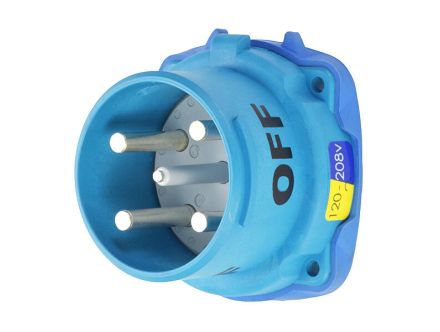

Inlet, 100A, 120/208V, 3P+N+E, Poly,
DS100C Series Information
- 65kA to 100kA Short‑Circuit Rated
- Metal or Poly Construction
- Up to 5 Auxiliary Contacts
- NEMA 3R IP54/IP55
- 120~600 VAC Versions
- UL & CSA Switch Rated
- 100 Amps
