33-94167 Meltric Plugs & Receptacles, DS100 Series
Receptacle, 100A, 120/208V, Poly,
MFG Item Number
33-94167
Meltric

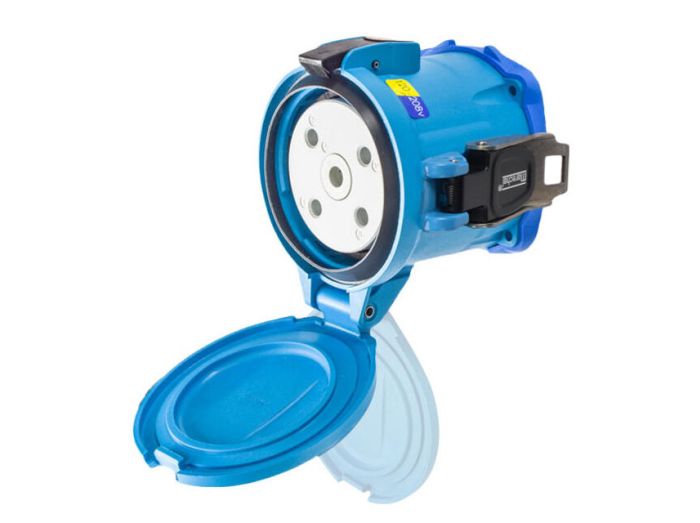

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

33-94167 Meltric Plugs & Receptacles, DS100 Series

Receptacle, 100A, 120/208V, Poly,
MFG Item Number
33-94167
Meltric
Series
DS100
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Plugs & Receptacles, DS100 Series
Item #
33-94167
Receptacle, 100A, 120/208V, Poly,

DS100 Series Information

  • 65kA to 100kA Short‑Circuit Rated
  • Metal or Poly Construction
  • Up to 5 Auxiliary Contacts
  • NEMA 3R IP54/IP55
  • 120~600 VAC Versions
  • UL & CSA Switch Rated
  • 100 Amps
DS Series Decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.



Links

Specifications

Specifications
Manufacturer Part Number 33-94167
Manufacturer Meltric
Product Series DS100
Family Series Meltric Plugs & Receptacles, DS100 Series
Description Receptacle, 100A, 120/208V, Poly, DS100
Connection Type Receptacle
Current Rating 100 A
Voltage 120 V, 208 V
Frequency 60 Hz
Auxiliary Contact None
Wire Size Range 2/0 AWG, 4 AWG
Material Non-Metallic
Operating Temperature -40-140 °F
Protection Rating IP66, IP67
Terminal Type Screw
Color Code Blue
NEMA Rating NEMA 4X
Approvals cCSAus, UL
H x W x D 5.65 " x 5.45 " x 5.75 "
Net Weight 3.97 lbs
Gross Weight 0.249 lbs
