350WB-120
Federal Signal Audible Signaling Devices, 350WB Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
350WB-120 Federal Signal Audible Signaling Devices, 350WB Series
HORN WEATHERPROOF BACK BOX 120VAC
MFG Item Number
350WB-120
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Audible Signaling Devices, 350WB Series
Item #
350WB-120
HORN WEATHERPROOF BACK BOX 120VAC
350WB Series Information
- 120/240 VAC
- 100 dB at 10 Ft.
- Up to 200 Ft. Range
- UL; cUL; CSA; FM Approvals
- Coded or Sustained Tones

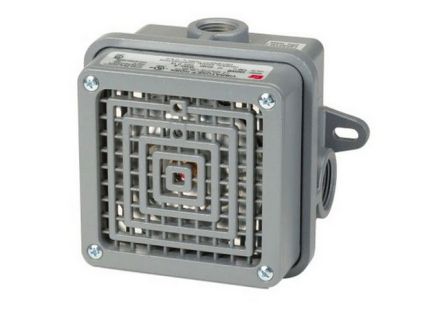

Model 350WB Vibratone features die‑cast aluminum rear housing sealed with a gray enamel finish. The rugged outer housing resists vandalism without reducing sound output. Model 350WB Vibratone is fused and utilizes a terminal block connection.
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 350WB-120 |
| Manufacturer | Federal Signal |
| Product Series | 350WB |
| Family Series | Federal Signal Audible Signaling Devices, 350WB Series |
| Description | Vibratone Horn With Weatherproof Back Box, 120VAC - Available in 120VAC and 240VAC. Coded or sustained tones. Wall mount. Produces 100 dBa at 10 feet 110 dBa at 1 meter. Fuse terminal block provided for field wiring. Indoor or outdoor use. Type 4X, |
| Type | Vibration |
| Nominal Voltage | 120 VAC |
| Current Rating | 0.18 A |
| Range | 200 ' |
| Explosion Proof | No |
| Hazardous Location | No |
| Operating Temperature | -65-150 °F |
| NEMA Rating | NEMA 4X |
| Approvals | CSA, cUL, FM, UL |
| H x W x D | 4.37 " x 2.75 " x 4.50 " |
| Net Weight | 2.8 lbs |
| Gross Weight | 2.8 lbs |
