Series

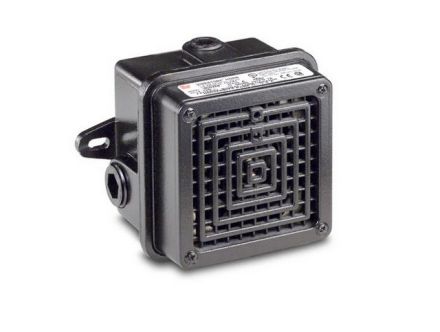

350WBX-120 Federal Signal Audible Signaling Devices, 350WBX Series
MFG #:
350WBX-120
Vibratone Hazardous Location Horn With Back Box, 120VAC - Available in 120VAC and 240VAC. Coded or sustained tones. Produces 100 dBa at 10 feet 110 dBa at 1 meter. Fuse terminal block provided for field wiring. Surface, flush or semi-flush mounting.
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 350WBX-120 |
| Manufacturer | Federal Signal |
| Product Series | 350WBX |
| Family Series | Federal Signal Audible Signaling Devices, 350WBX Series |
| Type | Vibration |
| Voltage | 120 VAC |
| Nominal Voltage | 120 VAC |
| Current Rating | 0.18 A |
| Explosion Proof | No |
| Hazardous Location | Yes |
| Operating Temperature | -65-150 °F |
| NEMA Rating | NEMA 4X |
| Approvals | CSA, cUL, UL |
| H x W x D | 3.66 " x 5.30 " x 5.30 " |
| Net Weight | 2.8 lbs |
| Gross Weight | 2.8 lbs |
Description
Audible Signaling Devices, 350WBX Series
Item #
350WBX-120
HORN HAZ LOC WEATHERPROOF BACK BOX
350WBX Series Information
- 120/240 VAC
- 100 dB at 10 Ft.
- Up to 200 Ft. Range
- UL; cUL; CSA Approvals
- Coded or Sustained Tones
This hazardous location horn accommodates surface, flush or semi‑flush mounting on walls, panels, and in cabinets.
The Model 350WBX Vibratone features die‑cast zinc housing with a corrosion resistant polyurethane finish. The rugged outer grille resists vandalism without reducing sound output. The 350WBX Vibratone is fused and utilizes a terminal block connection. The 350WBX Vibratone are approved for Class I, Division 2, Groups A,B,C and D; Class II, Division 2, Groups F and G; and Class III.
