Specifications

Specifications
Country of Origin	China
Manufacturer Part Number	365C-300-Q-30-PX
Manufacturer	ATC-Automatic Timing & Control
Product Series	365C
Family Series	ATC-Automatic Timing & Control Timers, 365C Series
Voltage	120 VAC
Nominal Voltage	120 VAC
Mounting	Through Panel
Number of Digits	3
Time Format	Hours:Minutes:Seconds
Display Type	LED
Termination	Screw
NEMA Rating	NEMA 12
Output	(1) DPDT Relay Form C
Status Indicator	No
Approvals	CSA, UR
H x W x D	2.83 " x 2.83 " x 6.81 "
Net Weight	1.375 lbs
Gross Weight	1.7938 lbs

Description

Timers, 365C Series

Item #

365C300Q30PX

Preset Timer, 120VAC, Panel Mount,

365C Series Information

Keeps track of the set point throughout the time cycle
Positive reset time and pulse length
Wide range
Programmable display
Noise immunity
Reliability and ruggedness
Compact, plug‑in and dust‑tight
Self diagnostics

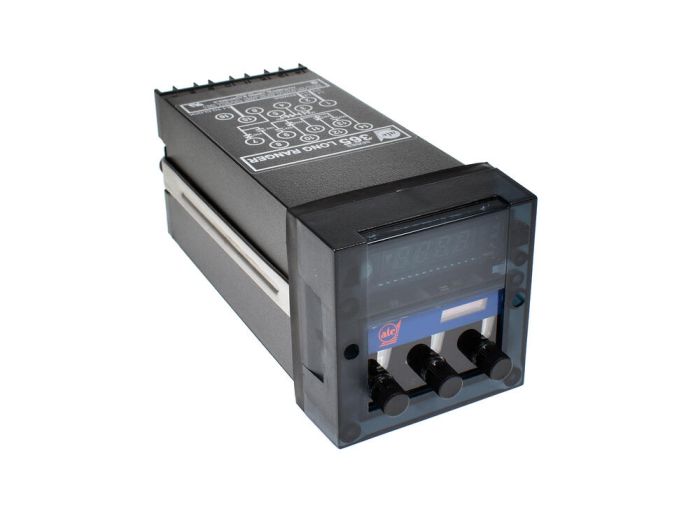

The ATC 365C is the latest generation in the popular long‑ranger timer series.The microprocessor‑based digital timer is equipped with three rotary knobs for setting and adjustment of the Preset.The Preset can be any three‑digit value from .01 SEC to 999 HR.The Decimal and Range are switch selectable.The high‑intensity blue vacuum fluorescent display is DIP switch selectable to Timeup or Timedown.Two heavy‑duty 7A DPDT relays provide instantaneous,interval or delayed output control.Plug‑in panel mounting allows easy replacement without the removal of field wiring.
