Specifications
| Manufacturer Part Number | 37-64167 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DS60 |
| Family Series | Meltric Plugs & Receptacles, DS60 Series |
| Connection Type | Receptacle |
| Current Rating | 60 A |
| Voltage | 120 VAC, 208 VAC |
| Frequency | 60 Hz |
| Number of Poles | 3 |
| Number of Wires | 5 |
| Lockout-Tagout | No |
| Auxiliary Contact | None |
| Built-In Strain Relief | No |
| Wire Size Range | 2 AWG, 10 AWG |
| Material | Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP66, IP67, IP69 |
| Terminal Type | Screw |
| Color Code | Blue, Yellow |
| NEMA Rating | NEMA 4X |
| Approvals | cCSAus, UL |
| H x W x D | 3.70 " x 4.40 " x 4.80 " |
| Net Weight | 2.69 lbs |
| Gross Weight | 2.895 lbs |
Description
Plugs & Receptacles, DS60 Series
Item #
37-64167

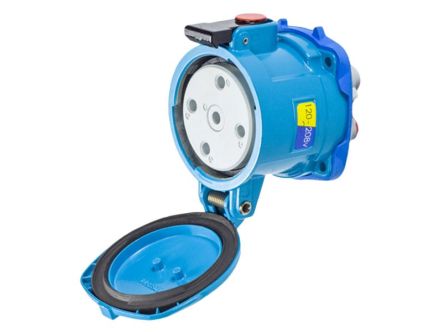

Receptacle, 60A, 120/208V, 3P+N+G,
DS60 Series Information
- 65kA to 100kA Short‑Circuit Rated
- Metal or Poly Construction
- Up to 5 Auxiliary Contacts
- NEMA 3R IP54/IP55
- 120~600 VAC Versions
- UL & CSA Switch Rated
- 60 Amps
