Specifications
| Manufacturer Part Number | 37-64243-C-K04 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DS100C |
| Family Series | Meltric Plugs & Receptacles, DS100c Series |
| Connection Type | Receptacle |
| Current Rating | 100 A |
| Voltage | 480 VAC |
| Frequency | 60 Hz |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Lockout-Tagout | No |
| Auxiliary Contact | None |
| Built-In Strain Relief | No |
| Wire Size Range | 2 AWG, 10 AWG |
| Material | Metallic |
| Operating Temperature | -40-140 °F |
| Terminal Type | Screw |
| Color Code | Red |
| NEMA Rating | NEMA 3R |
| Approvals | CSA, UL |
| H x W x D | 4.55 " x 3.75 " x 4.90 " |
| Net Weight | 2.62 lbs |
| Gross Weight | 2.805 lbs |
Description
Plugs & Receptacles, DS100C Series
Item #
37-64243-C-K04

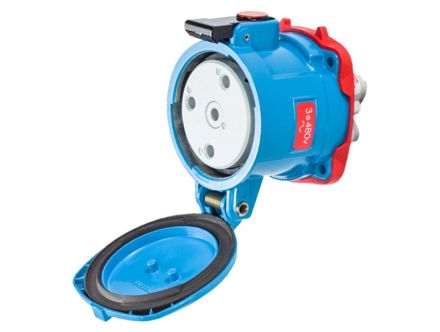

Receptacle, 100A, 480V, 3P+G, Metal,
DS100C Series Information
- 65kA to 100kA Short‑Circuit Rated
- Metal or Poly Construction
- Up to 5 Auxiliary Contacts
- NEMA 3R IP54/IP55
- 120~600 VAC Versions
- UL & CSA Switch Rated
- 100 Amps
