37-68072 Meltric Plugs & Receptacles, DS60 Series
Inlet, 60A, 250V, 2P+G, Metal, DS60
MFG Item Number
37-68072
Meltric

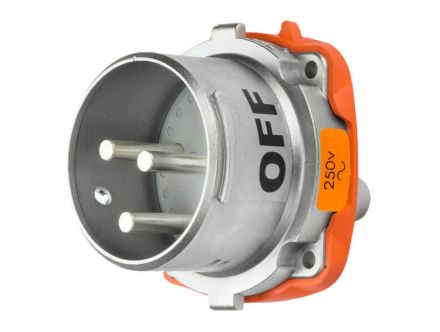

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

37-68072 Meltric Plugs & Receptacles, DS60 Series

Inlet, 60A, 250V, 2P+G, Metal, DS60
MFG Item Number
37-68072
Meltric
Series
DS60
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Plugs & Receptacles, DS60 Series
Item #
37-68072
Inlet, 60A, 250V, 2P+G, Metal, DS60

DS60 Series Information

  • 65kA to 100kA Short‑Circuit Rated
  • Metal or Poly Construction
  • Up to 5 Auxiliary Contacts
  • NEMA 3R IP54/IP55
  • 120~600 VAC Versions
  • UL & CSA Switch Rated
  • 60 Amps
DS Series Decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.



Links

Specifications

Specifications
Manufacturer Part Number 37-68072
Manufacturer Meltric
Product Series DS60
Family Series Meltric Plugs & Receptacles, DS60 Series
Description Inlet, 60A, 250V, 2P+G, Metal, DS60
Connection Type Inlet
Current Rating 60 A
Voltage 250 VAC
Frequency 60 Hz
Number of Poles 2
Number of Wires 3
Lockout-Tagout No
Auxiliary Contact None
Built-In Strain Relief No
Wire Size Range 2 AWG, 10 AWG
Material Metallic
Operating Temperature -40-140 °F
Protection Rating IP66, IP67, IP69
Terminal Type Screw
Color Code Orange
NEMA Rating NEMA 4X
Approvals cCSAus, UL
Net Weight 1.549 lbs
Gross Weight 1.549 lbs
