Specifications
| Manufacturer Part Number | 37-68233-C-K16 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DS100C |
| Family Series | Meltric Plugs & Receptacles, DS100c Series |
| Connection Type | Inlet |
| Current Rating | 100 A |
| Voltage | 208 VAC |
| Frequency | 60 Hz |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Lockout-Tagout | No |
| Auxiliary Contact | None |
| Built-In Strain Relief | No |
| Wire Size Range | 2 AWG, 10 AWG |
| Material | Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP54 |
| Terminal Type | Screw |
| Color Code | Blue |
| NEMA Rating | NEMA 4X |
| Approvals | CE, CSA, IEC, UL |
| H x W x D | 3.60 " x 3.90 " x 4.10 " |
| Net Weight | 1.455 lbs |
| Gross Weight | 1.59 lbs |
Description

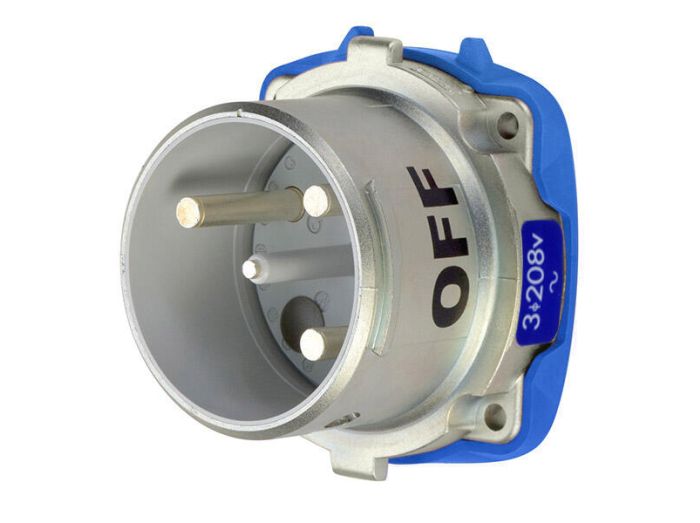

Plugs & Receptacles, DS100C Series
Item #
37-68233-C-K16
Inlet, 100A, 208V, 3P+G, Metal,
DS100C Series Information
- 65kA to 100kA Short‑Circuit Rated
- Metal or Poly Construction
- Up to 5 Auxiliary Contacts
- NEMA 3R IP54/IP55
- 120~600 VAC Versions
- UL & CSA Switch Rated
- 100 Amps
