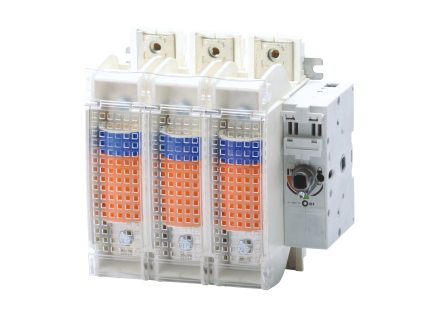

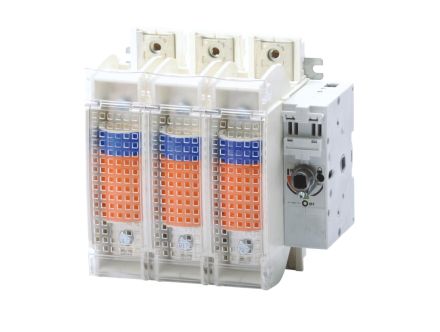

38613020 Socomec Disconnect Switches, FUSERBLOC Series
FUSERBLOC TS J 3X200A F/L
MFG Item Number
38613020
Socomec

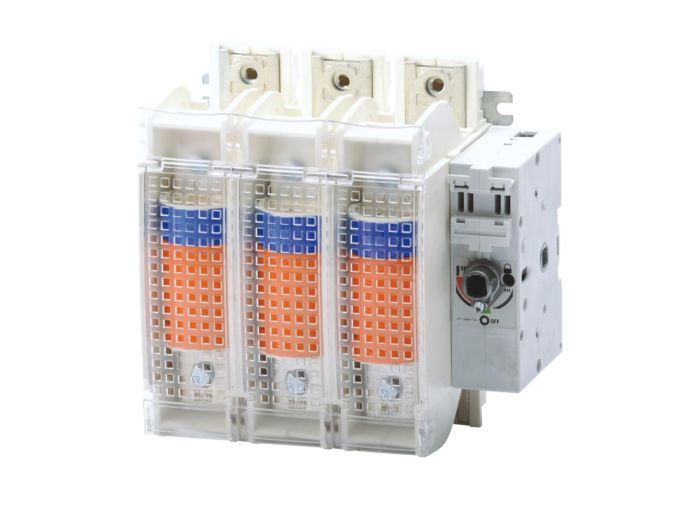

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

38613020 Socomec Disconnect Switches, FUSERBLOC Series

FUSERBLOC TS J 3X200A F/L
MFG Item Number
38613020
Socomec
Series
FUSERBLOC
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Disconnect Switches, FUSERBLOC Series
Item #
38613020
FUSERBLOC TS J 3X200A F/L

FUSERBLOC Series Information

  • On Load Make and Break Power Circuit Applications
  • Up to 200kA Short Circuit Rating
  • Voltage Sensing Terminals
  • Front or Side Operation
  • Double Break by Phase
  • Compact Footprints
  • Touch Safe Covers
  • Flange Operation
Socomec FUSERBLOC series are fusible disconnect switches are heavy duty switches that break and make power circuits on and off load. The switches employ double break contacts per pole that ensure complete isolation of the fuse when the switch is in the off position. These switches are extremely durable and are tested and approved for use in the most demanding applications. The test position function is enabled with handles with the test position. This function tests the control circuit auxiliaries without switching the main contacts. It is a simple alternative to a separately wired push button.

Links

Specifications

Specifications
Country of Origin Tunisia
Manufacturer Part Number 38613020
Manufacturer Socomec
Product Series FUSERBLOC
Family Series Socomec Disconnect Switches, FUSERBLOC Series
Description FUSERBLOC TS J 3X200A F/L
Poles 3
Current Rating 200 A
AC Voltage 600 VAC
Operator Type Thru-Door
Mounting Panel
Fusible Yes
Class J
Auxiliary Contact NC/NO
Approvals CSA, UL
H x W x D 5.80 " x 9.70 " x 12.90 "
Net Weight 7.805 lbs
Gross Weight 7.805 lbs
