Specifications
| Manufacturer Part Number | 405C-500-F-1-X |
|---|---|
| Manufacturer | ATC-Automatic Timing & Control |
| Product Series | 405C |
| Family Series | ATC-Automatic Timing & Control Relays, 405C Series |
| Operation | On Delay |
| Contacts | SPDT |
| Mounting | Panel, Socket |
| Status Indicator | LED |
| Adjustment Operator | Dial |
| Timing Range | 5 s, 5 Min, 5 Hrs, 50 s, 50 Min, 50 Hrs |
| Max Time | 50 Hrs |
| Nominal Coil Voltage | 24 VAC, 48 VAC, 120 VAC, 208 VAC, 240 VAC, 24 VDC |
| AC Voltage | 24-240 VAC |
| DC Voltage | 24 VDC |
| Contact Rating | 10 A |
| Termination | 8 Pin |
| Protection Rating | IP20 |
| Approvals | CE, UR |
| H x W x D | 1.89 " x 1.89 " x 3.34 " |
| Net Weight | 0.3125 lbs |
| Gross Weight | 0.35 lbs |
Description
Relays, 405C Series
Item #

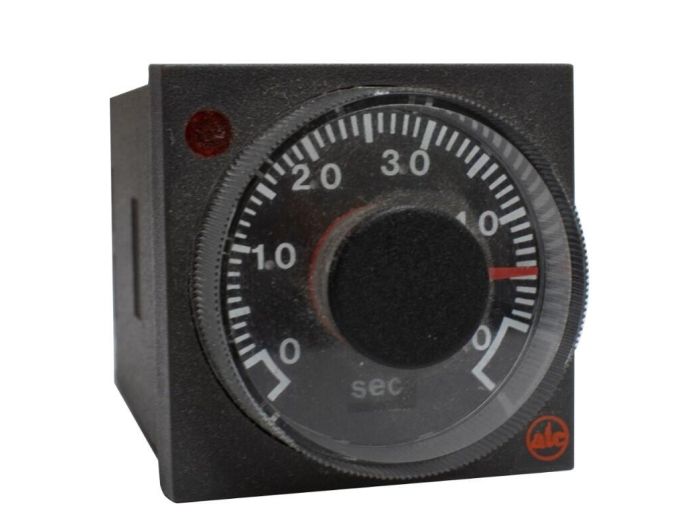

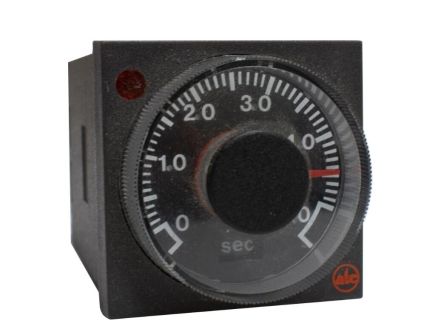

405C-500-F-1-X
1/16 DIN Timer with Instantaneous
405C Series Information
- On‑Delay version with instantaneous relay
- Selectable On‑Delay/Interval Timing Mode version
- Output Contacts rated 10A 120/240 VAC and 30 VDC
- Six Timing Ranges in a single unit
- Timing Ranges: 1 and 10 SEC, MIN,and HRS 5 and 50 SEC, MIN, and HRS
- Universal Power Supply: 24‑240 VAC and 24 VDC
- 48mm2 DIN Standard housing
- Large and easy to read dial shows decimal points
- Round (octal) socket mount or mount in panel cutout
- Range and Mode select are tamper proof when panel mounted
- Unique flashing cycle progress indication
