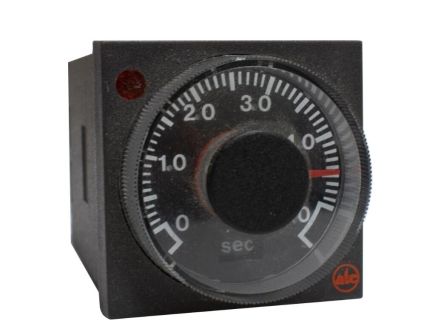

405C100F2X ATC-Automatic Timing & Control Relays, 405C Series
Timer 1/10 Sec/Min/Hr Interval
MFG Item Number
405C-100-F-2-X
ATC-Automatic-Timing-Control

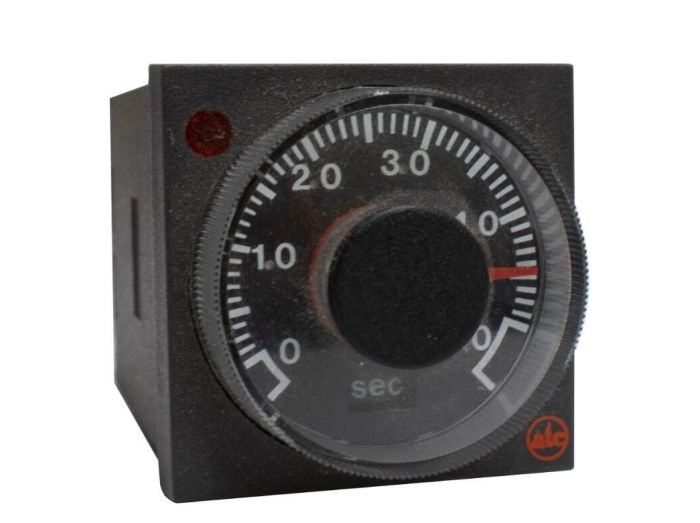

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

405C100F2X ATC-Automatic Timing & Control Relays, 405C Series

Timer 1/10 Sec/Min/Hr Interval
MFG Item Number
405C-100-F-2-X
ATC-Automatic-Timing-Control
Item Number
405C100F2X
Series
405C
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Relays, 405C Series
Item #
405C100F2X
Timer 1/10 Sec/Min/Hr Interval

405C Series Information

  • On‑Delay version with instantaneous relay
  • Selectable On‑Delay/Interval Timing Mode version
  • Output Contacts rated 10A 120/240 VAC and 30 VDC
  • Six Timing Ranges in a single unit
  • Timing Ranges: 1 and 10 SEC, MIN,and HRS 5 and 50 SEC, MIN, and HRS
  • Universal Power Supply: 24‑240 VAC and 24 VDC
  • 48mm2 DIN Standard housing
  • Large and easy to read dial shows decimal points
  • Round (octal) socket mount or mount in panel cutout
  • Range and Mode select are tamper proof when panel mounted
  • Unique flashing cycle progress indication

Links

Specifications

Specifications
Manufacturer Part Number 405C-100-F-2-X
Manufacturer ATC-Automatic Timing & Control
Product Series 405C
Family Series ATC-Automatic Timing & Control Relays, 405C Series
Description Timer 1/10 Sec/Min/Hr Interval
Operation Interval, On Delay
Contacts DPDT
Mounting Panel, Socket
Status Indicator LED
Adjustment Operator Dial
Timing Range 1 s, 1 Min, 1 Hr, 10 s, 10 Min, 10 Hrs
Max Time 10 Hrs
Nominal Coil Voltage 24 VAC, 48 VAC, 120 VAC, 208 VAC, 240 VAC, 24 VDC
AC Voltage 24-240 VAC
DC Voltage 24 VDC
Contact Rating 10 A
Termination 8 Pin
Protection Rating IP20
Approvals CE, UR
H x W x D 1.89 " x 1.89 " x 3.34 "
Net Weight 0.3125 lbs
Gross Weight 0.3125 lbs
