41307 Icotek Cable Entries, KT Small Series
Grommet, Small, Black, 7-8mm Range,
MFG Item Number
41307
Icotek

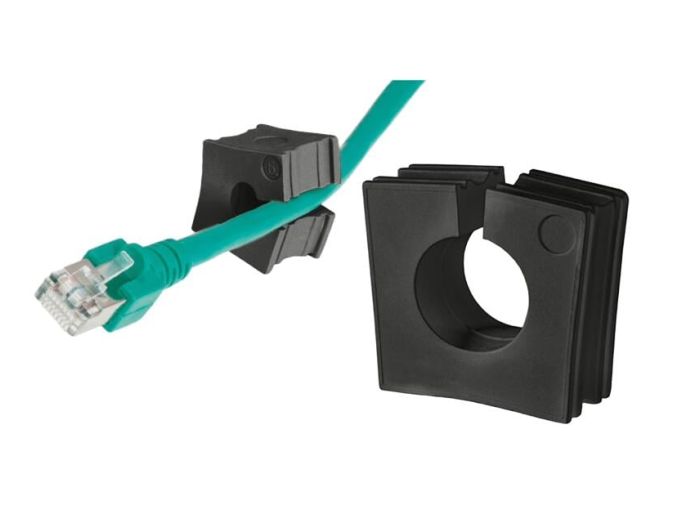

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

41307 Icotek Cable Entries, KT Small Series

Grommet, Small, Black, 7-8mm Range,
MFG Item Number
41307
Icotek
Series
KT Small
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Cable Entries, KT Small Series
Item #
41307
Grommet, Small, Black, 7-8mm Range,

KT Small Series Information

  • Enable Routing of Pre‑Terminated Cables through Cable Entry Frames and Split Cable Glands
  • Greatly Increased Cable Density When Using Double or Quadruple Grommets
  • Available for a Big Range of Cable Diameters
Due to a large variety of split KT grommets, cables, pipes and conduits with various diameters can be routed. When assembled correctly, the split inserts are held tightly within the frame. Correctly sizing the grommet to the cable diameter ensures a high degree of protection (up to IP65) and provides strain relief. The model range KT small is designed for cable diameters from 2 to 17 mm. When installing the grommet, the smooth side of the insert faces the middle of the cable entry frame.

Cable grommets KT small are used with the following cable entries:
KEL | KEL‑U | KEL‑ER | KEL‑FG | KEL‑FL | KVT range


Links

Videos

Specifications

Specifications
Country of Origin Germany
Manufacturer Part Number 41307
Manufacturer Icotek
Product Series KT Small
Family Series Icotek Cable Entries, KT Small Series
Description Grommet, Small, Black, 7-8mm Range, Single Hole, KT7
Nom. Grommet Dimensions 20 x 20 mm
Cables per Grommet 1
Cable Size Round - 7-8 mm
Split Grommet Yes
Material Elastomer
Color Black
Approvals cURus
H x W x D 0.75 " x 0.75 " x 0.80 "
Net Weight 0.015 lbs
Gross Weight 0.015 lbs
