Specifications

Specifications
Manufacturer Part Number	42222
Manufacturer	Icotek
Product Series	KEL 24-MT
Family Series	Icotek Cable Entries, KEL 24-MT Series
Nominal Grommet Capacity	8 Small, 3 Large
Grommets Included	No
Angle	Straight
Protection Rating	IP54
Split Frame	Yes
Material	Polyamide
Approvals	cURus
H x W x D	0.65 " x 4.00 " x 5.75 "
Net Weight	0.35 lbs
Gross Weight	0.415 lbs

Description

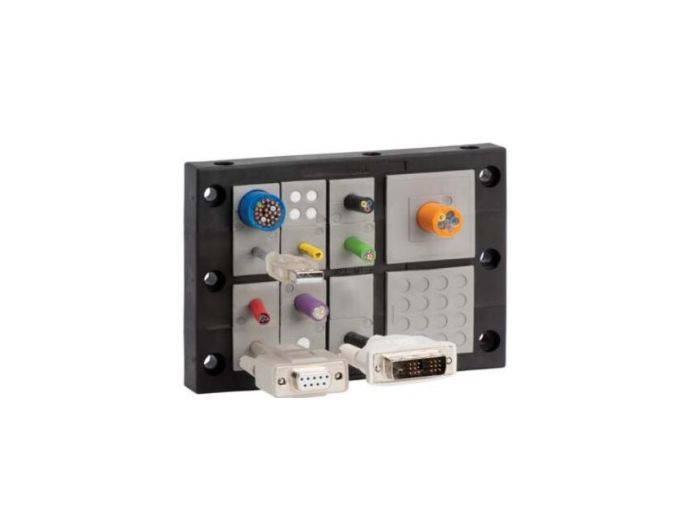

Cable Entries, KEL 24-MT Series

Item #

42222

KEL 24/11-MT black

KEL 24-MT Series Information

Retrofits, Repairs and Maintenance Can Be Done Much More Easily and Quickly
Warranty on Pre‑Terminated Cables Remains
Strain Relief According to EN 62444
High Stability, Vibration Resistant
High Cable Density

The cable entry frame KEL 24‑MT provides additional cable routing possibilities. The KEL 24‑MT series are KEL frames extended with an additional middle frame for routing additional cables. This allows for a quick, easy and cost effective routing solution for up to 80 cables. A flat rubber gasket is included in the shipment

Documents & Resources

Documents & Resources Links

Videos

Accessories

Compare compatible accessories for this product.

Accessories comparison
Image	Part	Description	Series	Material	Price	Action
	41210	Grommet, Small, Gray, 10-11mm Range, Single Round Hole, Type KT 10	KT Small	Elastomer	Price unavailable
	41252	Blank Grommet, Gray, BTG	KT Large	Elastomer	Price unavailable

42222 Icotek Cable Entries, KEL 24-MT Series
