48241 Icotek Cable Entries, KEL-ER 24 Series

• Retrofits, Repairs and Maintenance Can Be Done Much More Easily and Quickly
• High Cable Density, Wide Variety of Grommets
• Warranty on Pre‑Terminated Cables Remains
• Strain Relief According to EN 62444
• High Stability, Vibration Resistant

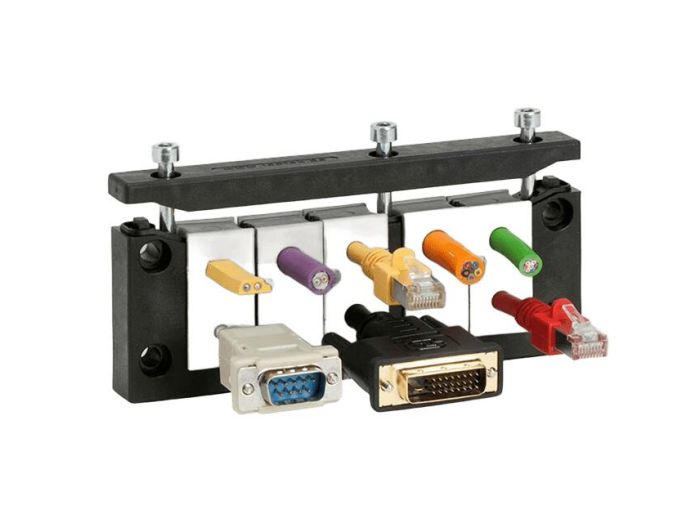

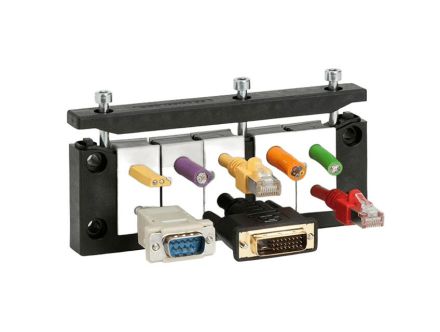

Split cable entry system for routing and sealing cables with connectors, providing an IP65 / up to NEMA type 4X rating and strain relief for cable diameters from 2 to 16 mm (KT 2 ‑ 15) and 16 to 35 mm (KT 16 ‑ 34). The new cable entry system is easy to install. Cable grommets are placed compartments in the frame and are securely fixed to the frame during assembly. The KEL‑ER 24 frame matches exactly the cut‑out dimensions for 24‑pin standard industrial connectors. A flat rubber gasket is included in the shipment.
