52-024-1
Federal Signal Audible Signaling Devices, 52 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

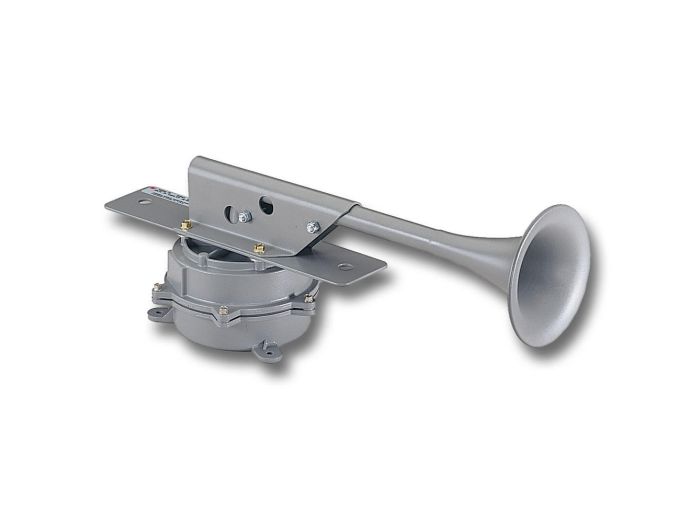

52-024-1 Federal Signal Audible Signaling Devices, 52 Series
HORN RESONATING 24VDC SURFACE MOUNT
MFG Item Number
52-024-1
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Audible Signaling Devices, 52 Series
Item #
52-024-1
HORN RESONATING 24VDC SURFACE MOUNT
52 Series Information
- 24 VDC
- 114 dB at 10 Ft.
- Withstands Extreme Outdoor Conditions
- Surface Mount with Flanges
- Type 4X Enclosure
Rubber gaskets and a power connector make the Model 52 completely watertight. The projector and internal parts are made of zinc‑coated steel or stainless steel to resist corrosion; the exterior is sealed with gray enamel paint. The housing is die cast aluminum. Tied and adhesive bonded internal wiring helps prevent electrical shorts, wire breakage, and loose connections. The Model 41 is available in 24VDC. Its 18‑32V operating range allows for voltage inconsistencies. The Model 52 has a duty cycle of five minutes on and five minutes off.
Federal Signal's Model 52 resonating horn is specifically designed for off‑road vehicles. It provides the very loud sound for which an air horn is usually required, but without the need for an expensive compressor.
Used by major manufactures of construction equipment, Model 52 resonating horns suit the warning needs of any off‑road vehicle working in a high noise environment, including excavators, backhoes, compactors (steamrollers), loaders, tractors, bulldozers, trenchers, and scrapers.
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 52-024-1 |
| Manufacturer | Federal Signal |
| Product Series | 52 |
| Family Series | Federal Signal Audible Signaling Devices, 52 Series |
| Description | Resonating Horn, 24VDC - Withstands extreme outdoor conditions. Produces 114 dBa at 10 feet 124 dBa at 1 meter with 1,000 foot range. Shock and vibration tolerant. Surface mount with flanges. Type 3R enclosure. |
| Type | Resonating |
| Voltage | 24 VDC |
| Nominal Voltage | 24 VDC |
| Current Rating | 4 A |
| Explosion Proof | No |
| Hazardous Location | No |
| Operating Temperature | -40-185 °F |
| NEMA Rating | NEMA 4X |
| H x W x D | 9.50 " x 8.50 " x 23.62 " |
| Net Weight | 10 lbs |
| Gross Weight | 10 lbs |
