Specifications
| Manufacturer Part Number | 57050003 |
|---|---|
| Manufacturer | Socomec |
| Product Series | RM CC |
| Family Series | Socomec Fuseblocks & Holders, RM CC Series |
| Current Rating | 30 A |
| Voltage | 600 V |
| Poles | 3 |
| Fuse Type | Class CC |
| Class | CC |
| Connection Type | Screw Terminal |
| Mounting | DIN Rail |
| Trip Indicator | No |
| Reinforced | No |
| Enclosed | Yes |
| Touch Safe | Yes |
| Approvals | UL |
| H x W x D | 0.75 " x 2.25 " x 3.00 " |
| Net Weight | 0.4 lbs |
| Gross Weight | 0.4 lbs |
Description

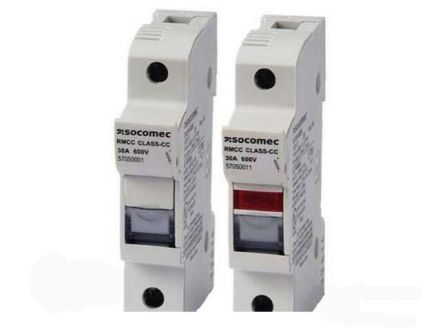

Fuseblocks & Holders, RM CC Series
Item #
57050003
RM CC 3P
RM CC Series Information
- Modular DIN 45 Mm Cut‑Out Design
- Up to 30A, 600 VAC, 200 kA RMS
- IP20 Finger Safe / Touch Safe
- RM Class Midget 30A ‑ 10 X 38 mm
