63-14162-843

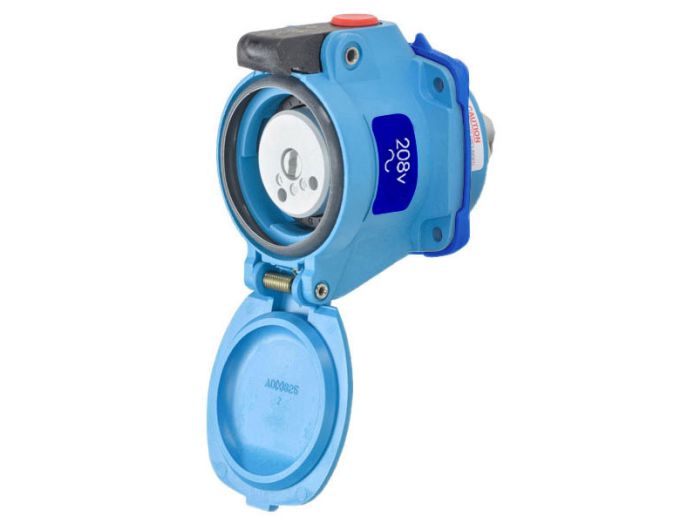

Meltric Plugs & Receptacles, DSN20 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
63-14162-843 Meltric Plugs & Receptacles, DSN20 Series
DSN20 RECEPTACLE
MFG Item Number
63-14162-843
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Plugs & Receptacles, DSN20 Series
Item #
63-14162-843
DSN20 RECEPTACLE
DSN20 Series Information
- Metal or Poly Construction
- Up to 4 Auxiliary Contacts
- 100kA Short‑Circuit Rated
- UL & CSA Switch Rated
- 120~600 VAC Versions
- NEMA 4X IP66+IP67
- 20 Amps
Specifications
| Manufacturer Part Number | 63-14162-843 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DSN20 |
| Family Series | Meltric Plugs & Receptacles, DSN20 Series |
| Description | DSN20 RECEPTACLE |
| Connection Type | Receptacle |
| Current Rating | 20 A |
| Voltage | 208 V |
| Frequency | 60 Hz |
| Auxiliary Contact | None |
| Wire Size Range | 12 AWG, 14 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP66, IP67 |
| Terminal Type | Screw |
| Color Code | Blue |
| NEMA Rating | NEMA 4X |
| Approvals | cCSAus, cUL |
| H x W x D | 3.00 " x 2.30 " x 3.20 " |
| Net Weight | 0.355 lbs |
| Gross Weight | 0.45 lbs |
