63-18043
Meltric Plugs & Receptacles, DSN20 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

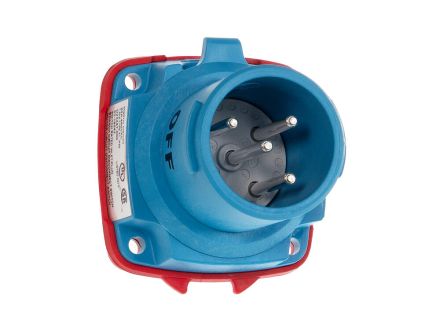

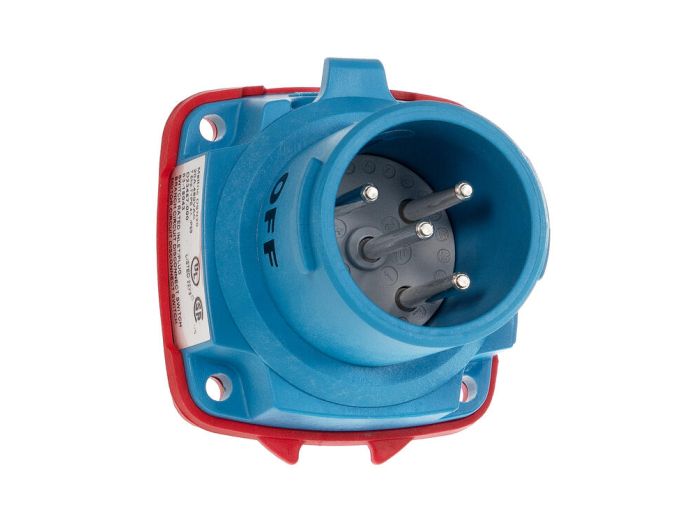

63-18043 Meltric Plugs & Receptacles, DSN20 Series
Inlet, 20A, 480V, 3P+G, Poly, DSN20
MFG Item Number
63-18043
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Plugs & Receptacles, DSN20 Series
Item #
63-18043
Inlet, 20A, 480V, 3P+G, Poly, DSN20
DSN20 Series Information
- Metal or Poly Construction
- Up to 4 Auxiliary Contacts
- 100kA Short‑Circuit Rated
- UL & CSA Switch Rated
- 120~600 VAC Versions
- NEMA 4X IP66+IP67
- 20 Amps
Specifications
| Country of Origin | China |
|---|---|
| Manufacturer Part Number | 63-18043 |
| Manufacturer | Meltric |
| Product Series | DSN20 |
| Family Series | Meltric Plugs & Receptacles, DSN20 Series |
| Description | Inlet, 20A, 480V, 3P+G, Poly, DSN20 Decontactor |
| Connection Type | Inlet |
| Current Rating | 20 A |
| Voltage | 480 VAC |
| Frequency | 60 Hz |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Lockout-Tagout | No |
| Auxiliary Contact | None |
| Built-In Strain Relief | No |
| Wire Size Range | 12 AWG, 14 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP66, IP67, IP69 |
| Terminal Type | Screw |
| Color Code | Red |
| NEMA Rating | NEMA 4X |
| Approvals | cCSAus, UL |
| H x W x D | 2.50 " x 2.25 " x 2.55 " |
| Net Weight | 0.2 lbs |
| Gross Weight | 0.295 lbs |
