Series

DSN20

63-18075 Meltric Plugs & Receptacles, DSN20 Series

MFG #:

63-18075

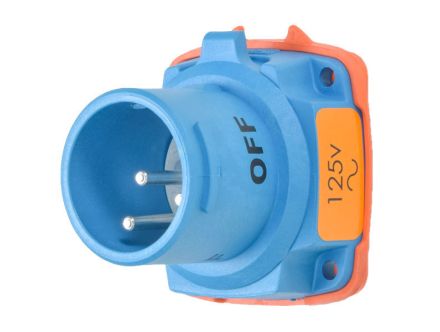

Inlet, 20A, 125V, 1P+N+G, Poly, DSN20 Decontactor

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Series

DSN20

63-18075 Meltric Plugs & Receptacles, DSN20 Series

Name: 63-18075 Meltric Plugs & Receptacles, DSN20 Series
Brand: Meltric
SKU: 63-18075-MELC
Price: 47.51 USD
Availability: InStock

MFG #:

63-18075

Inlet, 20A, 125V, 1P+N+G, Poly, DSN20 Decontactor

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number	63-18075
Manufacturer	Meltric
Product Series	DSN20
Family Series	Meltric Plugs & Receptacles, DSN20 Series
Connection Type	Inlet
Current Rating	20 A
Voltage	125 VAC
Frequency	60 Hz
Number of Poles	1
Number of Wires	3
Lockout-Tagout	No
Auxiliary Contact	None
Built-In Strain Relief	No
Wire Size Range	12 AWG, 14 AWG
Material	Non-Metallic
Operating Temperature	-40-140 °F
Protection Rating	IP66, IP67, IP69
Terminal Type	Screw
Color Code	Orange
NEMA Rating	NEMA 4X
Approvals	cCSAus, UL
H x W x D	2.25 " x 2.35 " x 2.45 "
Net Weight	0.253 lbs
Gross Weight	0.253 lbs

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Voltage	Series	Connection Type	Price
61-1A013-1	Poly Handle, 1in.NPT Entry				Quote Required
61-1A346	Finger Draw Plate, 2/Set, Recommended For Cord - Cord Connect, For Use W/DSN20 Receptacle/Inlet				Price unavailable
61-1A826	Padlockable Plug Cap, for Male Devices Only				Price unavailable
63-14075	Receptacle, 20A, 125V, 1P+N+G, Poly, DSN20 Decontactor	125 VAC	DSN20	Receptacle	Price unavailable
MS1	Metal Straight Adapter - Receptacle				Quote Required
