Specifications
| Manufacturer Part Number | 63-34043-843 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DSN30 |
| Family Series | Meltric Plugs & Receptacles, DSN30 Series |
| Connection Type | Receptacle |
| Current Rating | 30 A |
| Voltage | 480 VAC |
| Frequency | 60 Hz |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Lockout-Tagout | Yes |
| Auxiliary Contact | None |
| Built-In Strain Relief | No |
| Wire Size Range | 8 AWG, 14 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP66, IP67, IP69 |
| Terminal Type | Screw |
| Color Code | Red |
| NEMA Rating | NEMA 4X |
| Approvals | cCSAus, UL |
| H x W x D | 4.12 " x 4.52 " x 4.52 " |
| Net Weight | 0.811 lbs |
| Gross Weight | 0.811 lbs |
Description
Plugs & Receptacles, DSN30 Series
Item #
63-34043-843

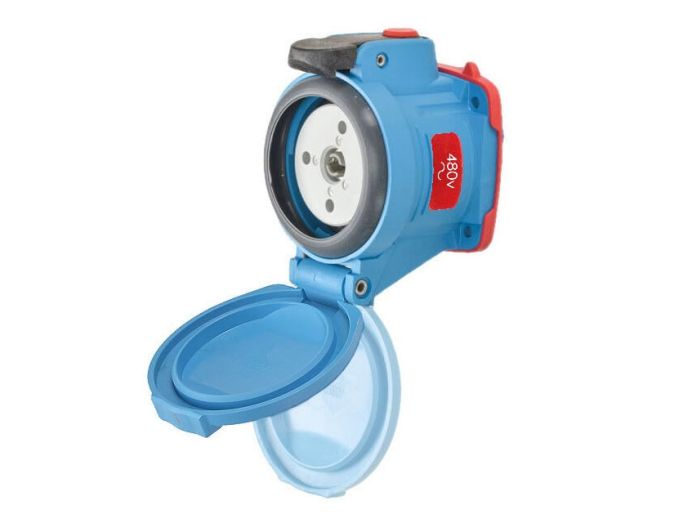

DSN30 RECEPTACLE
DSN30 Series Information
- Metal or Poly Construction
- Up to 4 Auxiliary Contacts
- 100kA Short‑Circuit Rated
- UL & CSA Switch Rated
- 120~600 VAC Versions
- NEMA 4X IP66+IP67
- 30 Amps
