63-38043-972
Meltric Plugs & Receptacles, DSN30 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

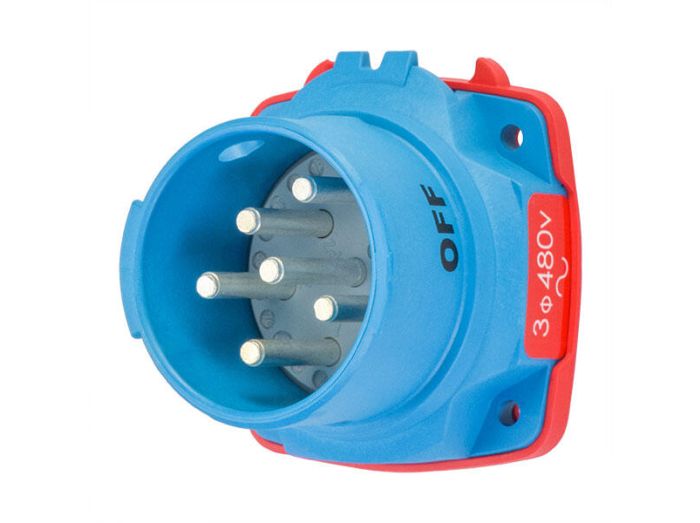

63-38043-972 Meltric Plugs & Receptacles, DSN30 Series
Inlet, 30A, 480V, 3P+G, Poly, DSN30
MFG Item Number
63-38043-972
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Plugs & Receptacles, DSN30 Series
Item #
63-38043-972
Inlet, 30A, 480V, 3P+G, Poly, DSN30
DSN30 Series Information
- Metal or Poly Construction
- Up to 4 Auxiliary Contacts
- 100kA Short‑Circuit Rated
- UL & CSA Switch Rated
- 120~600 VAC Versions
- NEMA 4X IP66+IP67
- 30 Amps
Specifications
| Manufacturer Part Number | 63-38043-972 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DSN30 |
| Family Series | Meltric Plugs & Receptacles, DSN30 Series |
| Description | Inlet, 30A, 480V, 3P+G, Poly, DSN30 Decontactor, Includes (2) Auxiliary/ Pilot Contacts |
| Connection Type | Inlet |
| Current Rating | 30 A |
| Voltage | 480 VAC |
| Frequency | 60 Hz |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Lockout-Tagout | No |
| Auxiliary Contact | 2 |
| Built-In Strain Relief | No |
| Wire Size Range | 8 AWG, 14 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP66, IP67, IP69 |
| Terminal Type | Screw |
| Color Code | Red |
| NEMA Rating | NEMA 4X |
| Approvals | cCSAus, UL |
| H x W x D | 3.18 " x 3.28 " x 3.52 " |
| Net Weight | 0.48 lbs |
| Gross Weight | 0.48 lbs |
