Series

DSN30

63-38073 Meltric Plugs & Receptacles, DSN30 Series

MFG #:

63-38073

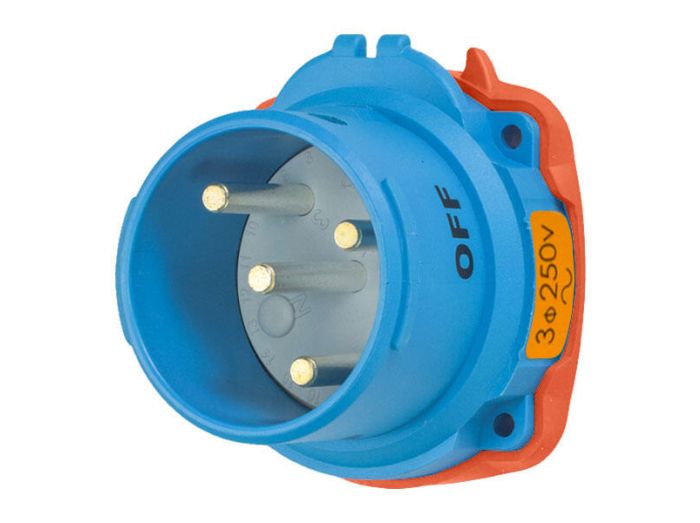

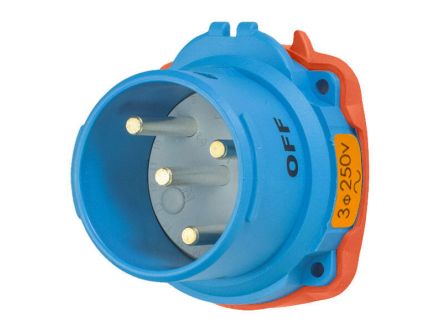

Inlet, 30A, 250V, 3P+G, Poly, DSN30 Decontactor

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

DSN30

63-38073 Meltric Plugs & Receptacles, DSN30 Series

Name: 63-38073 Meltric Plugs & Receptacles, DSN30 Series
Brand: Meltric
SKU: 63-38073-MELC
Price: 119.22 USD
Availability: InStock

MFG #:

63-38073

Inlet, 30A, 250V, 3P+G, Poly, DSN30 Decontactor

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number	63-38073
Manufacturer	Meltric
Product Series	DSN30
Family Series	Meltric Plugs & Receptacles, DSN30 Series
Connection Type	Inlet
Current Rating	30 A
Voltage	250 VAC
Frequency	60 Hz
Number of Poles	3
Number of Wires	4
Lockout-Tagout	No
Auxiliary Contact	None
Built-In Strain Relief	No
Wire Size Range	8 AWG, 14 AWG
Material	Non-Metallic
Operating Temperature	-40-140 °F
Protection Rating	IP66, IP67, IP69
Terminal Type	Screw
Color Code	Orange
NEMA Rating	NEMA 4X
Approvals	cCSAus, UL
H x W x D	2.55 " x 2.75 " x 2.90 "
Net Weight	0.425 lbs
Gross Weight	0.425 lbs

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Voltage	Series	Connection Type	Price
61-3A346	Finger Draw Plate, 2/Set, Recommended for Cord - Cord Connect, For Use W/ DSN30 Decontactor				Price unavailable
61-3A826	Padlockable Plug Cap, For Use W/ Male Devices Only, DSN30 Locking Cap				Price unavailable
63-34073	Receptacle, 30A, 250V, 3P+G, Poly, DSN30 Decontactor	250 VAC	DSN30	Receptacle	Price unavailable
