63-68073 Meltric Plugs & Receptacles, DSN60 Series
Inlet, 60A, 250V, 3P+G, Poly, DSN60
MFG Item Number
63-68073
Meltric

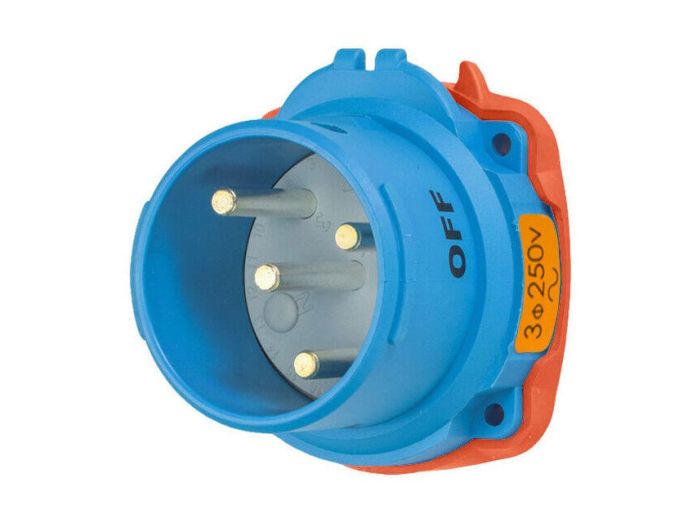

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

63-68073 Meltric Plugs & Receptacles, DSN60 Series

Inlet, 60A, 250V, 3P+G, Poly, DSN60
MFG Item Number
63-68073
Meltric
Series
DSN60
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Plugs & Receptacles, DSN60 Series
Item #
63-68073
Inlet, 60A, 250V, 3P+G, Poly, DSN60

DSN60 Series Information

  • Metal or Poly Construction
  • Up to 4 Auxiliary Contacts
  • 100kA Short‑Circuit Rated
  • UL & CSA Switch Rated
  • 120~600 VAC Versions
  • NEMA 4X IP66+IP67
  • 30 Amps
DSN Series Decontactors are switch and hp rated for quick, safe equipment changeouts. DSNs are ideal for wet environments since they offer NEMA 4X watertightness as soon as the plug is latched to the receptacle or as soon as the receptacle lid is closed.



Links

Videos

Specifications

Specifications
Manufacturer Part Number 63-68073
Manufacturer Meltric
Product Series DSN60
Family Series Meltric Plugs & Receptacles, DSN60 Series
Description Inlet, 60A, 250V, 3P+G, Poly, DSN60 Decontactor
Connection Type Inlet
Current Rating 60 A
Voltage 250 V
Frequency 60 Hz
Auxiliary Contact None
Wire Size Range 4 AWG, 14 AWG
Material Non-Metallic
Operating Temperature -40-140 °F
Protection Rating IP66, IP67
Terminal Type Screw
Color Code Orange
NEMA Rating NEMA 4X
Approvals cCSAus, cUL
H x W x D 2.80 " x 3.10 " x 3.45 "
Net Weight 0.572 lbs
Gross Weight 0.572 lbs
