Specifications
| Manufacturer Part Number | 63-68167 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DSN60 |
| Family Series | Meltric Plugs & Receptacles, DSN60 Series |
| Connection Type | Inlet |
| Current Rating | 60 A |
| Voltage | 120 V, 208 V |
| Frequency | 60 Hz |
| Auxiliary Contact | None |
| Wire Size Range | 4 AWG, 14 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP66, IP67 |
| Terminal Type | Screw |
| Color Code | Blue |
| NEMA Rating | NEMA 4X |
| Approvals | cCSAus, cUL |
| H x W x D | 2.85 " x 3.15 " x 3.55 " |
| Net Weight | 0.49 lbs |
| Gross Weight | 0.59 lbs |
Description
Plugs & Receptacles, DSN60 Series
Item #
63-68167

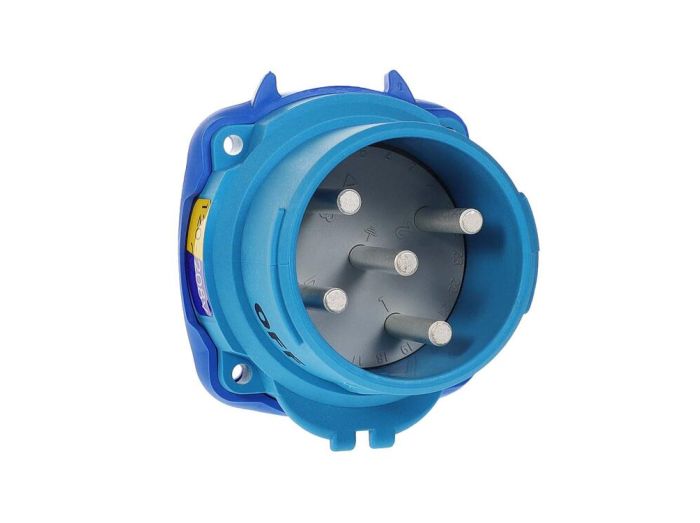

Inlet, 60A, 120/208V, 3P+N+G, Poly,
DSN60 Series Information
- Metal or Poly Construction
- Up to 4 Auxiliary Contacts
- 100kA Short‑Circuit Rated
- UL & CSA Switch Rated
- 120~600 VAC Versions
- NEMA 4X IP66+IP67
- 30 Amps
