Specifications
| Manufacturer Part Number | 63-C8003 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DSN37c |
| Family Series | Meltric Plugs & Receptacles, DSN37c Series |
| Connection Type | Inlet |
| Current Rating | 7.5 A |
| Voltage | 480 V, 130 V |
| Frequency | 50 Hz, 60 Hz |
| Wire Size Range | 14 AWG, 18 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP66, IP67 |
| Terminal Type | Solder, Crimp |
| Color Code | Blue |
| H x W x D | 2.30 " x 3.15 " x 8.95 " |
| Net Weight | 0.29 lbs |
| Gross Weight | 1.035 lbs |
Description
Plugs & Receptacles, DSN37c Series
Item #
63-C8003

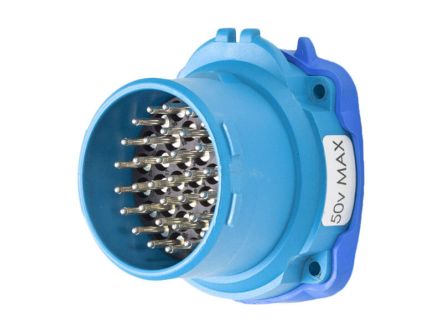

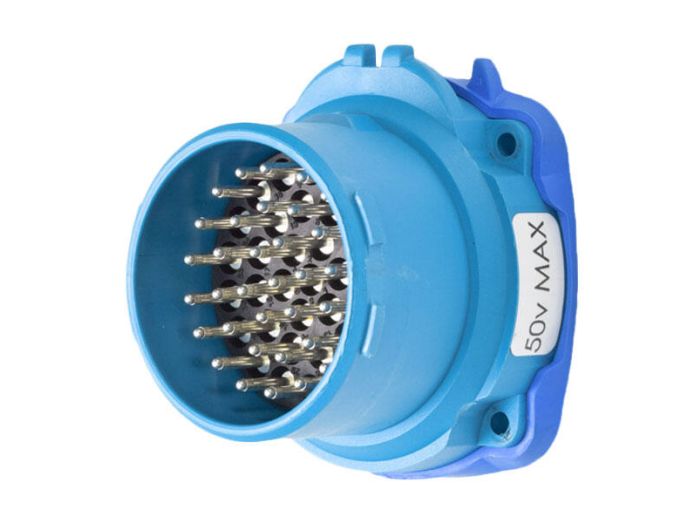

DSN37C INLET
DSN37c Series Information
- 480 VAC Max /130 VDC Voltage
- 2A Current Interrupting or 7.5A Non‑Current Interrupting
- IP66/IP67 Protection (Poly) or IP54/IP55 Protection (Stainless Steel)
