Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

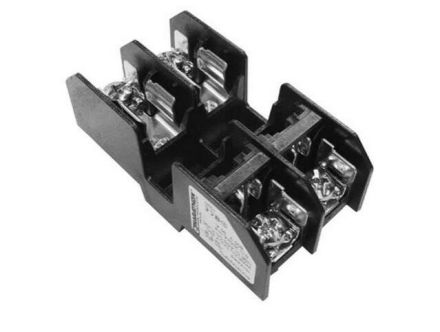

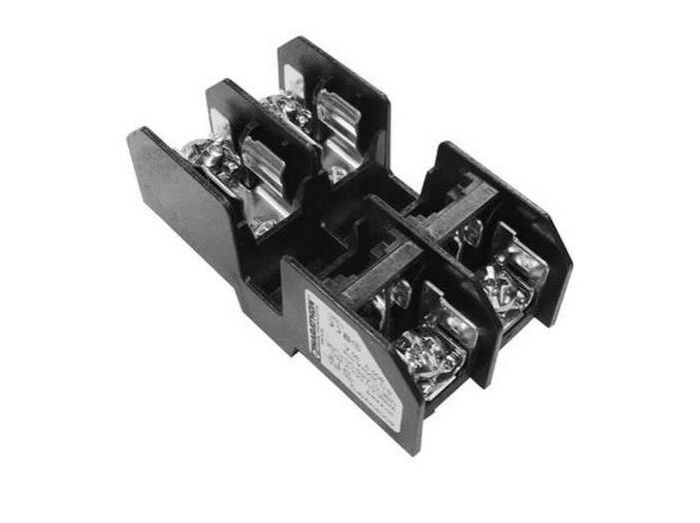

6CC30A2SPQ Marathon Special Products Fuseblocks & Holders, CLASS CC Series
MFG #:
6CC30A2SPQ
Fuseblock, 2-P, 30A/600V Max, CC, SEMS Pressure Plate/Quick Connect Terminals, UL Listed, CSA Certified
Specifications
| Manufacturer Part Number | 6CC30A2SPQ |
|---|---|
| Manufacturer | Marathon Special Products |
| Product Series | CLASS CC |
| Family Series | Marathon Special Products Fuseblocks & Holders, CLASS CC Series |
| Current Rating | 30 A |
| Voltage | 600 V |
| Poles | 2 |
| Fuse Type | Class CC |
| Class | CC |
| Connection Type | Pressure Connector, Quick Connect |
| Mounting | Panel Mount |
| Composition | Thermoplastic |
| Trip Indicator | No |
| Reinforced | No |
| Enclosed | No |
| Touch Safe | No |
| Approvals | CE, CSA, UL |
| H x W x D | 1.30 " x 1.55 " x 3.10 " |
| Net Weight | 0.155 lbs |
| Gross Weight | 0.155 lbs |
Description
Fuseblocks & Holders, CLASS CC Series
Item #
6CC30A2SPQ
Fuseblock, 2-P, 30A/600V Max, CC,
CLASS CC Series Information
- 30~60 Amps
- 600 Volts
- 1~3 Poles (Expanders Available)
- DIN Rail or Panel Mount
- Various Terminal Types
- 200KA Interrupting Capacity
