Specifications
| Manufacturer Part Number | A95-30-11-80 |
|---|---|
| Manufacturer | ABB |
| Product Series | A |
| Family Series | ABB Contactors, A Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 240 VAC |
| Coil Voltage | 230-240 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | A95 |
| Auxiliary Contact | 1NO, 1NC |
| Termination | Screw |
| Overload Relays | E140DU, TA80DU, TA110DU |
| General Purpose (AC1) | 125 A |
| UL Motor Switching (AC3) | 95 A |
| H x W x D | 4.85 " x 4.05 " x 5.90 " |
| Net Weight | 4.25 lbs |
| Gross Weight | 4.475 lbs |
Description

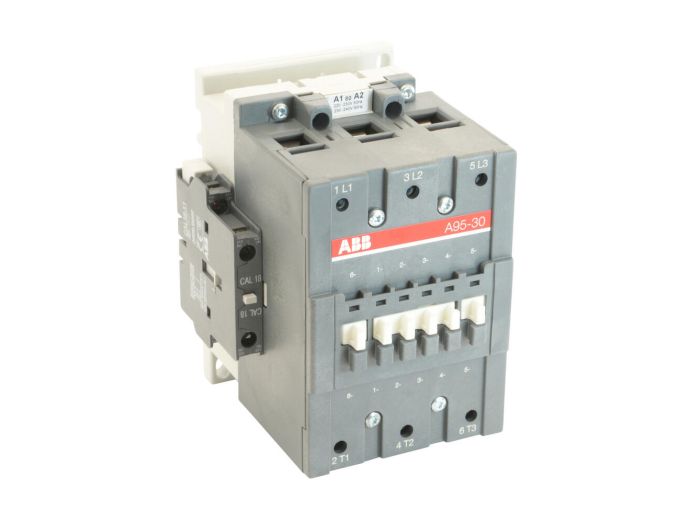

Contactors, A Series
Item #
A95-30-11-80
CONTACTOR, 3-P N/O, 240VAC, 95A
A Series Information
- 24~600 VAC/VDC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1650 Amps
- 3 or 4 Poles
- Touch Safe Design
- Easy Maintenance of Contacts and Coil Inspection
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Series | Type | Price | Action |
|---|---|---|---|---|---|---|
|
AF96-30-11-13 | AF96 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a | AF | AC Non-Reversing IEC |
Price unavailable
|
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | SKU | Price | Action |
|---|---|---|---|---|---|---|
|
BEM110-30 | Reversing Connection Kit, For Use with A/AE/AL95-A/AE/AL110 Contactors Insultated, Solid Copper Bars | ABB Contactors | BEM110-30-ABBG |
Quote Required
|
