Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | ABD310NUG |
| Manufacturer | IDEC |
| Product Series | TWND |
| Family Series | IDEC Switches, TWND Series |
| Illuminated | No |
| Operation | Momentary |
| Mounting | 30 mm |
| Operator Size (mm) | 40 mm |
| Contacts | 1NO |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Metal Hex |
| Lens/Button Shape | Mushroom |
| Operator Color | Green |
| Terminal Type | Screw |
| Material | Polyamide |
| Protection Rating | IP65 |
| NEMA Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 5, NEMA 12, NEMA 13 |
| Approvals | CE, CSA, UL |
| H x W x D | 1.60 " x 1.60 " x 2.70 " |
| Net Weight | 0.19 lbs |
| Gross Weight | 0.21 lbs |
Description
Switches, TWND Series
Item #
ABD310NUG

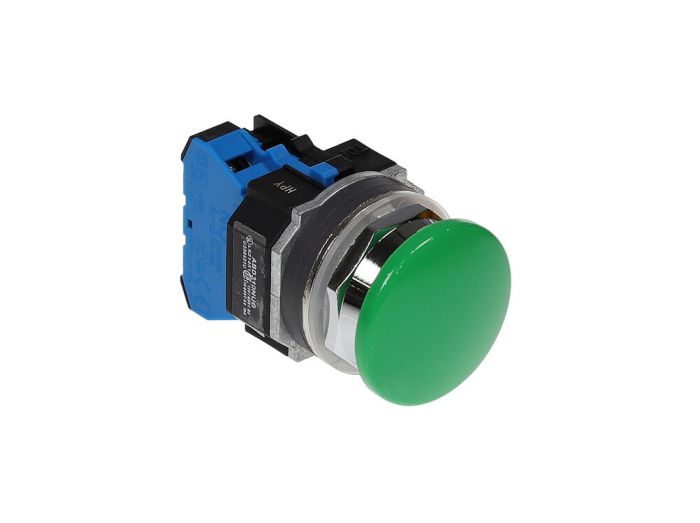

Pushbutton, Mom, Grn, 40mm Mush, 1NO
TWND Series Information
- Slow Break NC or NO Contact Operation
- 600 Rated Insulation Voltage and 10 Amp Rated Thermal Current
- Comply with UL508, CSA C22.2 Standards
