Series ACS580
ACS580-01-156A-4
MFG #: 3AUA0000204821

Create a free account or sign in to unlock our best online pricing!

Your account pricing is now applied.

866-354-0063 [email protected]
866-354-0063 [email protected]
Search
Request Quote
Cart
ABB
Series
ACS580
ACS580-01-156A-4 ABB Drives, ACS580 Series
MFG #:
3AUA0000204821
ACS580 AC Drive, 3-380-480V In, 125HP, 156A, Type 1, 1.1 overload, Assistant Standard, HxWxD 34.69x11.18x14.57 in, Wall
View Full Specs

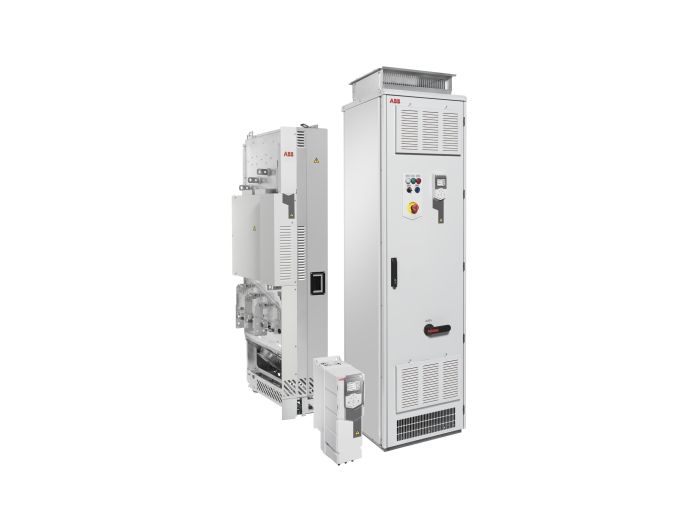

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

ABB
Series
ACS580

ACS580-01-156A-4 ABB Drives, ACS580 Series

MFG #:
3AUA0000204821
Item Number
ACS580-01-156A-4
ACS580 AC Drive, 3-380-480V In, 125HP, 156A, Type 1, 1.1 overload, Assistant Standard, HxWxD 34.69x11.18x14.57 in, Wall
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Country of Origin United States
Manufacturer Part Number 3AUA0000204821
Manufacturer ABB
Product Series ACS580
Family Series ABB Drives, ACS580 Series
Phase 3
HP (Constant Torque Rating) 100 hp
HP (Variable Torque Rating) 125 hp
Amps (Constant Torque Rating) 124 A
Amps (Variable Torque Rating) 156 A
Brake Dynamic Braking, Flux Braking
Closed Loop No
AC Line Regenerative No
Operator Controls Keypad Included
NEMA Rating NEMA 1
Motor Control-Max Level Open Loop Vector (Sensorless Vector)
Mounting Panel
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-500 VAC
Frequency 500 Hz
Frame Size R7
Protection Rating IP21
Dynamic Braking Optional (External)
Height 34.6 "
Width 11.2 "
Depth 14.6 "
Comments Includes STO, Sensorless Vector Control For AC Induction And PM Motors, Adaptive Programming
H x W x D 23.00 " x 15.00 " x 39.00 "
Net Weight 120 lbs
Gross Weight 144 lbs
