ACS880-01-180A-5
ABB Drives, ACS880 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

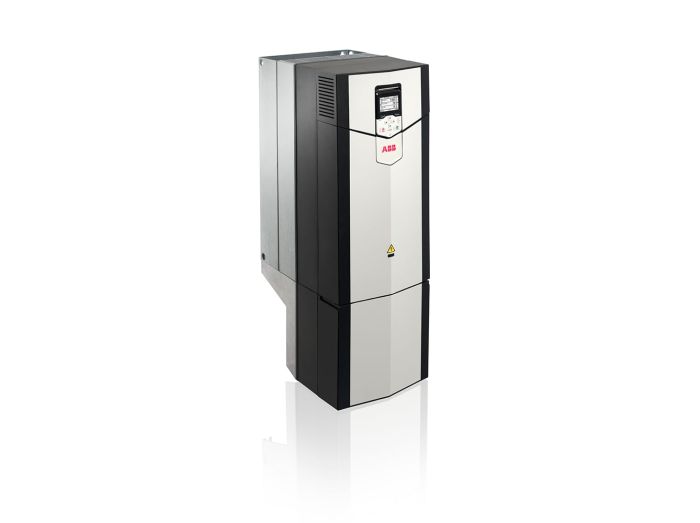

ACS880-01-180A-5 ABB Drives, ACS880 Series
ACS880 AC Drv, 3P 480V In, 150HP,
MFG Item Number
3AUA0000143755
Item Number
ACS880-01-180A-5
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Drives, ACS880 Series
Item #
ACS880-01-180A-5
ACS880 AC Drv, 3P 480V In, 150HP,
ACS880 Series Information
- AC Drive
- Built for Torque Control
- Intuitive User Interface
- Can be Interconnected
- Can Use for Commercial Applications
Compact alternating current drives for a variety of applications, including oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills and marine. Embedded pre‑programmed macros for ease of integration into automated systems. Achieves versatility in its differing applications; has capability of functioning in many areas in the commercial industry.
- Phase: 3
- .75‑2700 HP Range
- Reliable and Safe
- Sensorless Vector Control
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 3AUA0000143755 |
| Manufacturer | ABB |
| Product Series | ACS880 |
| Family Series | ABB Drives, ACS880 Series |
| Description | ACS880 AC Drive, 3-380-500V In, 150HP, 180A, Type 1, 1.1 overload, Assistant Bluetooth, HxWxD 34.65x11.18x14.37 in, Wall |
| Phase | 3 |
| HP (Constant Torque Rating) | 125 hp |
| HP (Variable Torque Rating) | 150 hp |
| Amps (Constant Torque Rating) | 156 A |
| Amps (Variable Torque Rating) | 180 A |
| Brake | DC Injection, Dynamic Braking, Flux Braking |
| Closed Loop | Optional |
| AC Line Regenerative | No |
| Operator Controls | Keypad Included |
| NEMA Rating | NEMA 1 |
| Motor Control-Max Level | Direct Torque Control |
| Mounting | Panel |
| Nominal Input Voltage | 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 380-500 VAC |
| Frequency | 500 Hz |
| Frame Size | R7 |
| Protection Rating | IP21 |
| Dynamic Braking | Optional (Internal) |
| Height | 34.6 " |
| Width | 11.2 " |
| Depth | 14.4 " |
| Comments | Includes Safe Torque Off, Removable Memory Unit And Customizable Keypad With Startup Assistant. |
| Net Weight | 121 lbs |
| Gross Weight | 121 lbs |
