Specifications
| Manufacturer Part Number | AE16KNS0AB |
|---|---|
| Manufacturer | Eaton |
| Product Series | Freedom |
| Family Series | Eaton Starters, Freedom Series |
| Style | Open |
| Industry Standard | IEC |
| Poles | 3 |
| Voltage | 110 VAC, 120 VAC |
| Nominal Voltage | 120 VAC |
| UL Motor Starting (AC3) | 73 A |
| General Purpose (AC1) | 80 A |
| Coil Type | Magnetic |
| Auxiliary Contact | 1NO |
| Overload Type | Thermal |
| Overload Series | C306 |
| Termination | Screw |
| Mounting | Surface |
| H x W x D | 2.56 " x 4.44 " x 8.08 " |
| Net Weight | 4 lbs |
| Gross Weight | 4.35 lbs |
Description
Starters, Freedom Series
Item #
AE16KNS0AB

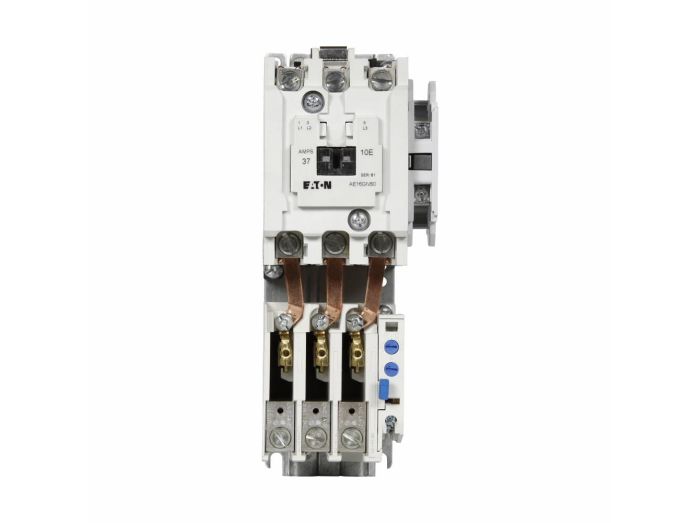

Starter, 3-P, 120VAC, FVNR, Open
Freedom Series Information
- 12~120VDC; 24~600VAC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1350 Amps
- 2, 3, 4, or 5 Poles
- IP20 Finger Protection Shields Available
- Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
- Adequate for most general duty control applications.
