AE16NN0A Eaton Starters, Freedom Series
MFG #:
AE16NN0A
Starter, 120VAC Coil, Less Heaters, 140A Max Motor Load, 100HP@480VAC Max Load
View Full Specs

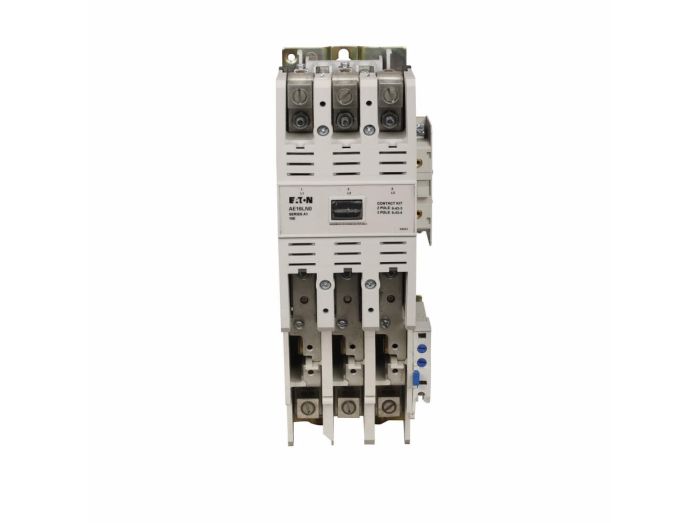

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Eaton
Series
Freedom

AE16NN0A Eaton Starters, Freedom Series

MFG #:
AE16NN0A
Starter, 120VAC Coil, Less Heaters, 140A Max Motor Load, 100HP@480VAC Max Load
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number AE16NN0A
Manufacturer Eaton
Product Series Freedom
Family Series Eaton Starters, Freedom Series
Style Open
Industry Standard IEC
Poles 3
Voltage 110 VAC, 120 VAC
Nominal Voltage 120 VAC
UL Motor Starting (AC3) 140 A
General Purpose (AC1) 175 A
Coil Type Magnetic
Auxiliary Contact 1NO
Overload Type Thermal
Overload Series C306
Termination Screw
Mounting Surface
H x W x D 4.08 " x 5.94 " x 11.35 "
Net Weight 11 lbs
Gross Weight 11 lbs
