ABB
Series
AF
AF16Z-30-01-21 ABB Contactors, AF Series
MFG #:
AF16Z-30-01-21
AF16Z contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF..Z contactors include an electronic coil interface accepting a
View Full Specs

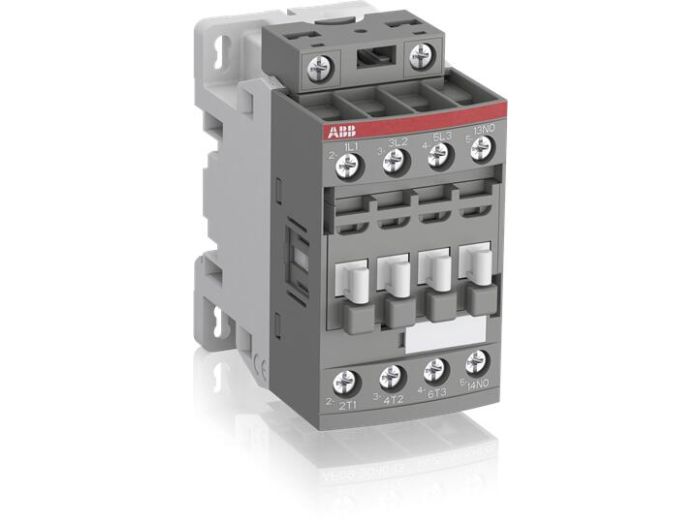

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

ABB
Series
AF

AF16Z-30-01-21 ABB Contactors, AF Series

MFG #:
AF16Z-30-01-21
AF16Z contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF..Z contactors include an electronic coil interface accepting a
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number AF16Z-30-01-21
Manufacturer ABB
Product Series AF
Family Series ABB Contactors, AF Series
Type AC Non-Reversing IEC
Nominal Coil Voltage 24 VAC, 48 VAC, 60 VAC, 24 VDC, 48 VDC, 60 VDC
Coil Voltage 24-60 VAC, 20-60 VDC
Coil Type Electronic
Poles 3NO
Auxiliary Contact 1NC
Termination Screw
General Purpose (AC1) 30 A
UL Motor Switching (AC3) 18 A
Approvals cULus
H x W x D 1.85 " x 3.11 " x 3.43 "
Net Weight 0.675 lbs
Gross Weight 0.77 lbs
