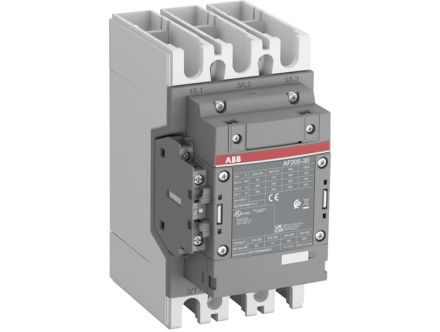

AF205-30-11-13 ABB Contactors, AF Series
MFG #:
AF205-30-11-13
A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 100-250 V, 50/60 Hz and DC
Specifications
| Manufacturer Part Number | AF205-30-11-13 |
|---|---|
| Manufacturer | ABB |
| Product Series | AF |
| Family Series | ABB Contactors, AF Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 120 VAC, 208 VAC, 240 VAC, 125 VDC |
| Coil Voltage | 100-250 VAC, 100-250 VDC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contact | 1NO, 1NC |
| Termination | Box Lug |
| General Purpose (AC1) | 350 A |
| UL Motor Switching (AC3) | 205 A |
| H x W x D | 8.66 " x 7.87 " x 11.02 " |
| Net Weight | 6.255 lbs |
| Gross Weight | 7.16 lbs |
Description
Contactors, AF Series
Item #
AF205-30-11-13
CTR, 3P, 192A, 100-250VAC/DC, 1/1
AF Series Information
- Coils Cover 24 V ‑ 500 V AC and 20 V ‑ 500 V DC
- 24 V DC Coil for Direct Control by PLC‑Output > 250 mA
- Low Holding Consumption up to 1.7 W
- Mirror, Mechanically Linked Contacts
- Built‑in Surge Suppression
- Up to 560 kW ‑ 400 V AC‑3, 900 hp ‑ 480 V and 2850 A ‑ 690 V AC‑1, 2850 A ‑ General Use
The AF Series of contactors are used for controlling power circuits up to 600 V AC and 240 V DC. They are mainly used for controlling 3‑phase motors, non‑inductive or slightly inductive loads. Contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC – AF contactors can manage large control voltage variations. One coil (e.g., 100...250 V 50/60 Hz ‑ DC) can be used for different control voltages used worldwide without any coil change – AF contactors have built‑in surge protection and do not require additional surge suppressors – The built‑in N.C. auxiliary contact is a mirror contact in compliance with annex F of IEC 60947‑4‑1.
Contactors contain integrated, electronically controlled coils which reduce energy consumption. Contains push‑in spring terminals which allow for fast, easy wiring. Contactors can overbridge voltage drops and sags.
