Series AF
AF26N1R-3022-13
MFG #: AF26N1R-3022-13

Create a free account or sign in to unlock our best online pricing!

Your account pricing is now applied.

866-354-0063 [email protected]
866-354-0063 [email protected]
Search
Request Quote
Cart
ABB
Series
AF
AF26N1R-3022-13 ABB Contactors, AF Series
MFG #:
AF26N1R-3022-13
N.REV SZ1 100-250VAC/DC 2/2
View Full Specs

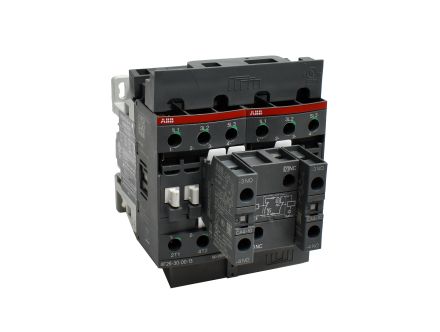

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

ABB
Series
AF

AF26N1R-3022-13 ABB Contactors, AF Series

MFG #:
AF26N1R-3022-13
N.REV SZ1 100-250VAC/DC 2/2
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number AF26N1R-3022-13
Manufacturer ABB
Product Series AF
Family Series ABB Contactors, AF Series
Type AC Reversing NEMA
Nominal Coil Voltage 120 VAC, 208 VAC, 240 VAC, 125 VDC, 250 VDC
Coil Voltage 100-250 VAC, 100-250 VDC
Coil Type Magnetic
Poles 3NO
NEMA Frame Size 1
Auxiliary Contact 2NO, 2NC
Termination Screw Terminal
Approvals CSA, UL
H x W x D 4.80 " x 3.60 " x 4.50 "
Net Weight 1.785 lbs
Gross Weight 2.05 lbs
