AF370-30-22-11
ABB Contactors, AF Series

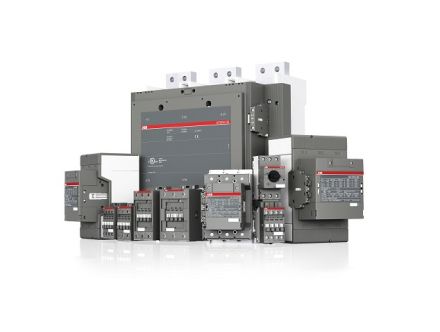

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
AF370-30-22-11 ABB Contactors, AF Series
CTR, 3P, 361A, 20-60VDC/24-60VAC, 2/2
MFG Item Number
AF370-30-22-11
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Contactors, AF Series
Item #
AF370-30-22-11
CTR, 3P, 361A, 20-60VDC/24-60VAC, 2/2
AF Series Information
- Coils Cover 24 V ‑ 500 V AC and 20 V ‑ 500 V DC
- 24 V DC Coil for Direct Control by PLC‑Output > 250 mA
- Low Holding Consumption up to 1.7 W
- Mirror, Mechanically Linked Contacts
- Built‑in Surge Suppression
- Up to 560 kW ‑ 400 V AC‑3, 900 hp ‑ 480 V and 2850 A ‑ 690 V AC‑1, 2850 A ‑ General Use
The AF Series of contactors are used for controlling power circuits up to 600 V AC and 240 V DC. They are mainly used for controlling 3‑phase motors, non‑inductive or slightly inductive loads. Contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC – AF contactors can manage large control voltage variations. One coil (e.g., 100...250 V 50/60 Hz ‑ DC) can be used for different control voltages used worldwide without any coil change – AF contactors have built‑in surge protection and do not require additional surge suppressors – The built‑in N.C. auxiliary contact is a mirror contact in compliance with annex F of IEC 60947‑4‑1.
Contactors contain integrated, electronically controlled coils which reduce energy consumption. Contains push‑in spring terminals which allow for fast, easy wiring. Contactors can overbridge voltage drops and sags.
Specifications
| Manufacturer Part Number | AF370-30-22-11 |
|---|---|
| Manufacturer | ABB |
| Product Series | AF |
| Family Series | ABB Contactors, AF Series |
| Description | A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 24-60 V, 50 and 60 Hz, 20-60 V DC |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 24 VAC, 60 VAC, 24 VDC, 48 VDC, 60 VDC |
| Coil Voltage | 24-60 VAC, 24-60 VDC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contact | 2NO, 2NC |
| Termination | Box Lug |
| General Purpose (AC1) | 600 A |
| UL Motor Switching (AC3) | 370 A |
| H x W x D | 6.89 " x 8.78 " x 10.63 " |
| Net Weight | 10.1525 lbs |
| Gross Weight | 11.784 lbs |
