Specifications

Specifications

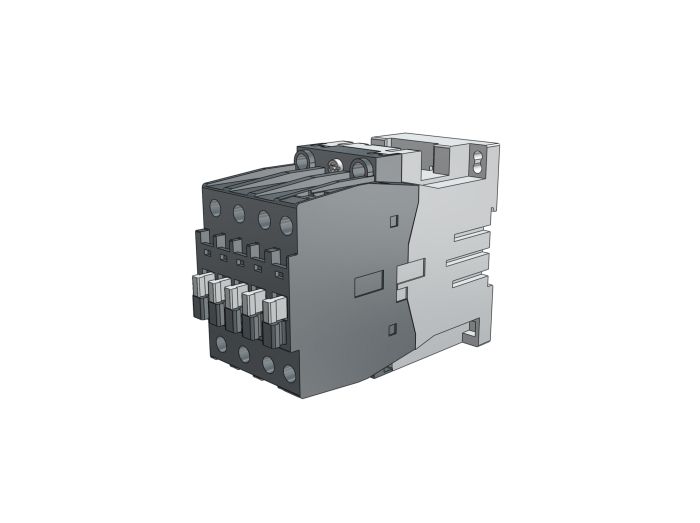

Manufacturer Part Number	AL30-30-01-81
Manufacturer	ABB
Product Series	A
Family Series	ABB Contactors, A Series
Type	AC Non-Reversing IEC
Nominal Coil Voltage	24 VDC
Coil Voltage	24 VDC
Coil Type	Magnetic
Poles	3NO
Frame Size	AL30
Auxiliary Contact	1NC
Termination	Screw
Overload Relays	TA25DU
General Purpose (AC1)	50 A
UL Motor Switching (AC3)	34 A
H x W x D	3.94 " x 2.36 " x 5.20 "
Net Weight	2.1 lbs
Gross Weight	2.1 lbs

Description

Contactors, A Series

Item #

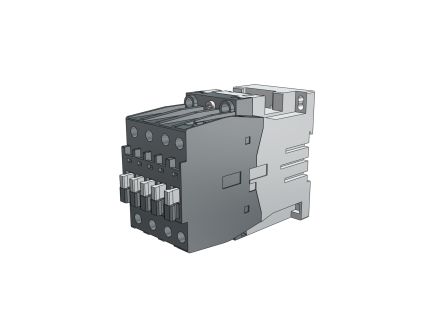

AL30-30-01-81

CONTACTOR

A Series Information

24~600 VAC/VDC Coils
Up to 450 HP @ 240V
Up to 900 HP @ 480V
UL; CSA Approved
Up to 1650 Amps

A‑Line contactors are mainly used for controlling 3‑phase motors and for controlling power circuits corresponding to their operating characteristics up to 690 and even 1000 VAC and 440 VDC. A variety of accessories are available for top or side‑mount versions.
