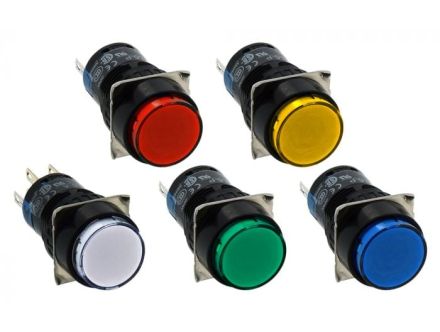

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
AL6M-M11-JW IDEC Switches, A6 Series
Push Button, 16mm Round
MFG Item Number
AL6M-M11-JW
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Switches, A6 Series
Item #
AL6M-M11-JW
Push Button, 16mm Round
A6 Series Information
- 16mm (5/8") round mounting hole
- Super bright LED Illumination
- Momentary, Maintained, Selector, Key, Pilot Light and Push‑Lock/Turn‑Reset Functions
- Gold‑clad silver snap acting contacts for reliable low level switching
- IP40 (dustproof) or IP65 (oiltight) versions
- Choice of round, square or rectangular bezel shapes
- .110" solder/quick connect termination
The A6 series of pushbuttons and pilot devices offer a very competitive price and simple construction in a space saving package.
Features include snap action, double throw contacts, with gold plating for reliable low level switching. Ideal for such applications as PLC inputs, logic level switching, or anywhere space is at a premium.
Offered in three styles (round, square, or rectangular), all units are terminated via .110" quick connect / solder tabs. LED illumination includes a built‑in current limiting resistor, and gasketed lenses provide an IP65 watertight / oiltight panel seal. Models include illuminated and non‑illuminated pushbuttons, pilot lights, selectors, key switches, and a push‑lock/turn‑reset switch.
Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | AL6M-M11-JW |
| Manufacturer | IDEC |
| Product Series | A6 |
| Family Series | IDEC Switches, A6 Series |
| Description | Push Button, 16mm Round |
| Illuminated | Yes |
| Operation | Momentary |
| Mounting | 16 mm |
| Contacts | SPDT |
| Bezel | Plastic Round |
| Lamp Type | LED |
| Nominal Lamp Voltage | 6 VDC |
| Lens/Button Shape | Round Extended |
| Protection Rating | IP40 |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
