Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | AL6Q-M24P-G |
| Manufacturer | IDEC |
| Product Series | A6 |
| Family Series | IDEC Switches, A6 Series |
| Illuminated | Yes |
| Operation | Momentary |
| Mounting | 16 mm |
| Operator Size (mm) | 18 x 18 mm |
| Contacts | DPDT |
| Max Voltage | 250 VAC, 250 VDC |
| Current Rating | 3 A |
| Bezel | Plastic Square |
| Lamp Type | LED |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Lens/Button Shape | Square Flush |
| Operator Color | Green |
| Terminal Type | Quick Connect |
| Protection Rating | IP65 |
| Approvals | CE, CSA, UR |
| Comments | Fixed contacts. LED included. Built-in limiting resistor and reverse polarity protection diode. |
| H x W x D | 0.32 " x 0.75 " x 1.55 " |
| Net Weight | 0.05 lbs |
| Gross Weight | 0.05 lbs |
Description

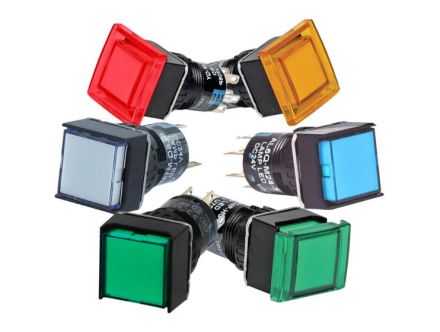

Switches, A6 Series
Item #
AL6Q-M24P-G
Pushbutton, Mom, Grn, Flush, 24V Dir
A6 Series Information
- 16mm (5/8") round mounting hole
- Super bright LED Illumination
- Momentary, Maintained, Selector, Key, Pilot Light and Push‑Lock/Turn‑Reset Functions
- Gold‑clad silver snap acting contacts for reliable low level switching
- IP40 (dustproof) or IP65 (oiltight) versions
- Choice of round, square or rectangular bezel shapes
- .110" solder/quick connect termination
The A6 series of pushbuttons and pilot devices offer a very competitive price and simple construction in a space saving package.
Features include snap action, double throw contacts, with gold plating for reliable low level switching. Ideal for such applications as PLC inputs, logic level switching, or anywhere space is at a premium.
Offered in three styles (round, square, or rectangular), all units are terminated via .110" quick connect / solder tabs. LED illumination includes a built‑in current limiting resistor, and gasketed lenses provide an IP65 watertight / oiltight panel seal. Models include illuminated and non‑illuminated pushbuttons, pilot lights, selectors, key switches, and a push‑lock/turn‑reset switch.
