Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | AL6Q-P4-Y |
| Manufacturer | IDEC |
| Product Series | A6 |
| Family Series | IDEC Pilot Lights, A6 Series |
| Push-to-Test | No |
| Mounting | 16 mm |
| Lamp Type | LED |
| Lens/Button Shape | Flat Square |
| Lens Color | Yellow |
| Bezel | Black Plastic |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Protection Rating | IP40 |
| Terminal Type | Solder, Quick Connect |
| Approvals | CE, CSA, UL |
| Comments | Built-in current limiting resistor and reverse polarity protection diode. |
| H x W x D | 0.71 " x 0.71 " x 1.22 " |
| Gross Weight | 0.015 lbs |
| Net Weight | 0.015 lbs |
Description

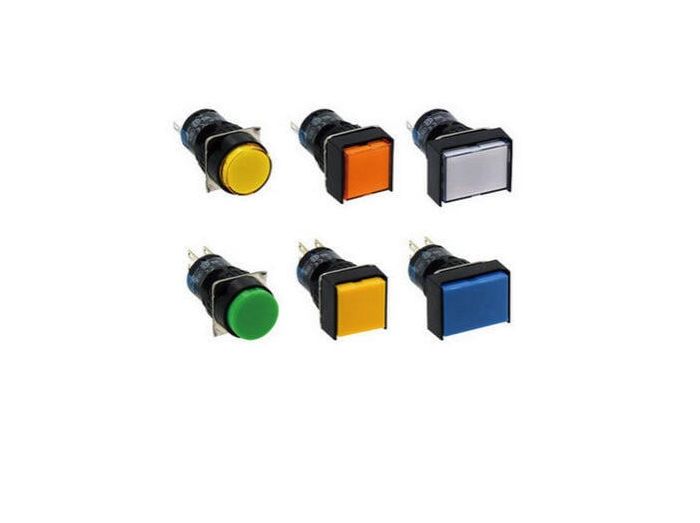

Pilot Lights, A6 Series
Item #
AL6Q-P4-Y
Pilot Light, Ylw, 24V Direct, LED,
A6 Series Information
- 16mm Mounting Size
- Full Voltage LEDs
- Solder/Quick Connect Terminals
- IP40 or IP65 Models
- UL; CSA; CE Approvals
