Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | ALFD22201DNUG |
| Manufacturer | IDEC |
| Product Series | TWND |
| Family Series | IDEC Switches, TWND Series |
| Illuminated | Yes |
| Operation | Momentary |
| Mounting | 30 mm |
| Operator Size (mm) | 28.5 mm |
| Contacts | 1NC |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Metal Hex |
| Lamp Type | LED |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Lens/Button Shape | Round Extended |
| Operator Color | Green |
| Terminal Type | Screw |
| Material | Polycarbonate |
| Protection Rating | IP65 |
| Approvals | CE, CSA, UL |
| H x W x D | 1.63 " x 1.58 " x 2.79 " |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description

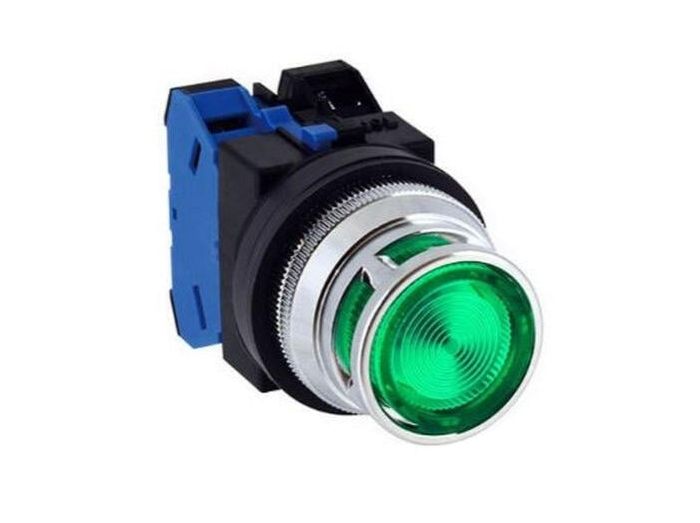

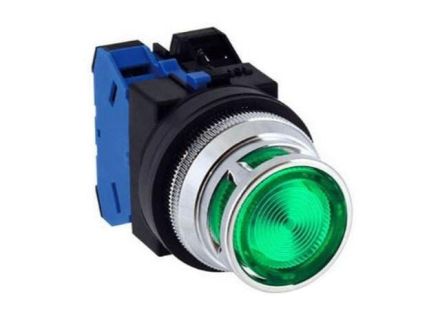

Switches, TWND Series
Item #
ALFD22201DNUG
Pushbutton, Mom, Grn, Ext, 24V
TWND Series Information
- Slow Break NC or NO Contact Operation
- 600 Rated Insulation Voltage and 10 Amp Rated Thermal Current
- Comply with UL508, CSA C22.2 Standards
