AN16SN0AB Eaton Starters, Freedom Series
NEMA OPEN 3P STR SIZE 5 120V COIL
MFG Item Number
AN16SN0AB
Eaton

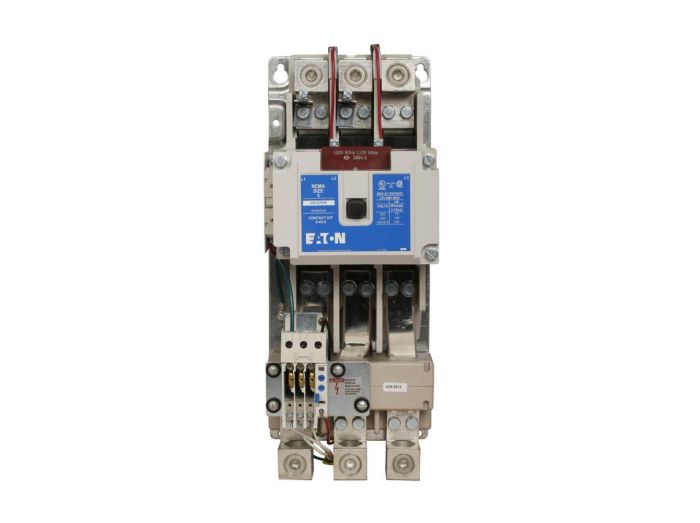

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

AN16SN0AB Eaton Starters, Freedom Series

NEMA OPEN 3P STR SIZE 5 120V COIL
MFG Item Number
AN16SN0AB
Eaton
Series
Freedom
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Starters, Freedom Series
Item #
AN16SN0AB
NEMA OPEN 3P STR SIZE 5 120V COIL

Freedom Series Information

  • 12~120VDC; 24~600VAC Coils
  • Up to 450 HP @ 240V
  • Up to 900 HP @ 480V
  • UL; CSA Approved
  • Up to 1350 Amps
Freedom Series contactors feature long life twin break, silver cadmium oxide contacts which provide excellent conductivity and superior resistance to welding and arc erosion. Non‑reversing contactors are most commonly used to switch motor loads in applications where running over current protection is either not required or is provided separately.

  • 2, 3, 4, or 5 Poles
  • IP20 Finger Protection Shields Available
  • Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
  • Adequate for most general duty control applications.

Links

Specifications

Specifications
Manufacturer Part Number AN16SN0AB
Manufacturer Eaton
Product Series Freedom
Family Series Eaton Starters, Freedom Series
Description Eaton Freedom NEMA motor control starter, NEMA Freedom Series Non-Reversing Reset Overload Relay Starter, 75 hp at 208V, 100 hp at 240V, 200 hp at 480,600V maximum horsepower, 120V/60 Hz or 110V/50 Hz coil voltage, 270A, Three-pole, Size 5
Style Open
Industry Standard NEMA
Poles 3
Voltage 120 VAC
Nominal Voltage 120 VAC
Current Rating 270 A
Overload Type Thermal
Overload Series C306
Termination Screw
NEMA Frame Size 5
Mounting Surface
H x W x D 9.40 " x 12.40 " x 21.50 "
Net Weight 34 lbs
Gross Weight 34 lbs
