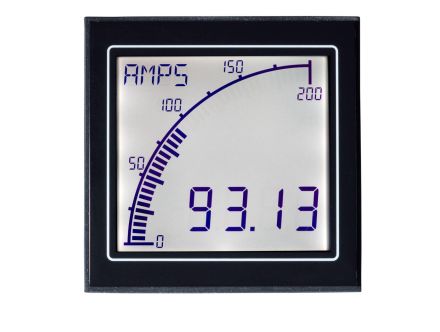

APM-CT-APO
Trumeter Panel Meters & Gauges, APM Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
APM-CT-APO Trumeter Panel Meters & Gauges, APM Series
CT METER POS LCD WITH OUTPUTS
MFG Item Number
APM-CT-APO
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Panel Meters & Gauges, APM Series
Item #
APM-CT-APO
CT METER POS LCD WITH OUTPUTS
APM Series Information
- Separate Display Area for Annunciations, Custom Messages, and Alarms
- User Adjustable Backlight Brightness and Color
- Two Independent Alarm Set‑Points
- 40 Segment Bar Graph Display
- Large 4 Digit Display
The Trumeter APM is the most visible, easy to use, multi‑format, programmable panel meter on the market; providing you with the highest level of accuracy and an immediate visual indication of your critical parameters. The APM has been specifically designed for engineers requiring a more effective way of monitoring and displaying data. The Trumeter APM is a cost‑effective alternative to the traditional moving coil and expensive digital panel meters.
Specifications
| Manufacturer Part Number | APM-CT-APO |
|---|---|
| Manufacturer | Trumeter |
| Product Series | APM |
| Family Series | Trumeter Panel Meters & Gauges, APM Series |
| Description | CT METER POS LCD WITH OUTPUTS |
| Type | AC Amps |
| Max Input Signal | 5 A |
| Display Type | Positive LCD |
| Display Digits | 4 |
| Power Supply | 12-24 VDC |
| Nominal Voltage | 12 VDC, 24 VDC |
| Nominal Size | 68 mm |
| Relays | 0 |
| Alarm Indicators | 2 LCD |
| Analog Output | 4-20 mA |
| Communication | USB |
| Accuracy | 0.5 % |
| Operating Temperature | 14-140 °F |
| Protection Rating | IP65 |
| Approvals | cUL, UL |
| Comments | Positive Display Color Scheme |
| H x W x D | 2.94 " x 3.50 " x 3.54 " |
| Net Weight | 0.4335 lbs |
| Gross Weight | 0.4335 lbs |
