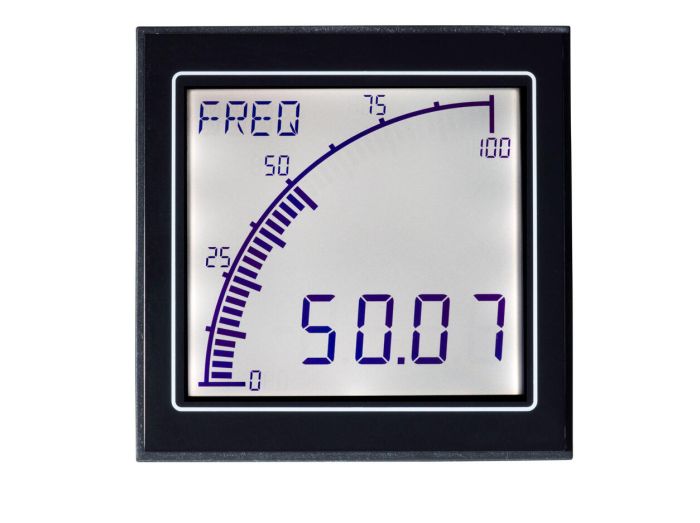

APM-M2-APO
Trumeter Panel Meters & Gauges, APM Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
APM-M2-APO Trumeter Panel Meters & Gauges, APM Series
POS LCD W O/P 90-240VAC
MFG Item Number
APM-M2-APO
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Panel Meters & Gauges, APM Series
Item #
APM-M2-APO
POS LCD W O/P 90-240VAC
APM Series Information
- Separate Display Area for Annunciations, Custom Messages, and Alarms
- User Adjustable Backlight Brightness and Color
- Two Independent Alarm Set‑Points
- 40 Segment Bar Graph Display
- Large 4 Digit Display
The Trumeter APM is the most visible, easy to use, multi‑format, programmable panel meter on the market; providing you with the highest level of accuracy and an immediate visual indication of your critical parameters. The APM has been specifically designed for engineers requiring a more effective way of monitoring and displaying data. The Trumeter APM is a cost‑effective alternative to the traditional moving coil and expensive digital panel meters.
Specifications
| Manufacturer Part Number | APM-M2-APO |
|---|---|
| Manufacturer | Trumeter |
| Product Series | APM |
| Family Series | Trumeter Panel Meters & Gauges, APM Series |
| Description | POS LCD W O/P 90-240VAC |
| Type | AC Amps, AC Volts, DC Amps, DC Volts, Hertz |
| Max Input Signal | 400 Hz, 5 A, 600 V |
| Display Type | Positive LCD |
| Display Digits | 4 |
| Power Supply | 100-240 VAC |
| Nominal Voltage | 120 VAC, 240 VAC |
| Nominal Size | 68 mm |
| Alarm Indicators | User Configurable |
| Analog Output | 4-20 mA |
| Communication | USB |
| Accuracy | 1 % |
| Operating Temperature | 14-140 °F |
| NEMA Rating | NEMA 12, NEMA 4 |
| Protection Rating | IP65 |
| Approvals | cUL, UL |
| Comments | Positive Display Color Scheme |
| H x W x D | 2.30 " x 2.90 " x 3.25 " |
| Net Weight | 0.38 lbs |
| Gross Weight | 0.47 lbs |
