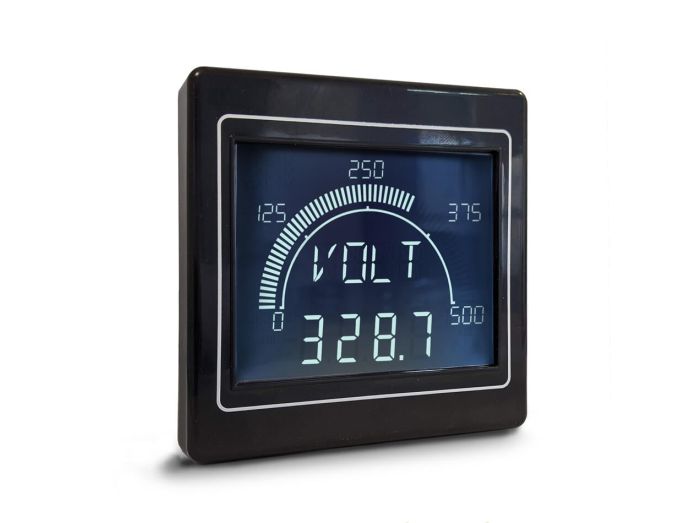

APM-MAX-M21-NU-4R
Trumeter Panel Meters & Gauges, APM-MAX Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
APM-MAX-M21-NU-4R Trumeter Panel Meters & Gauges, APM-MAX Series
VOLT, AMP, FREQ, PWR, MOD RTU
MFG Item Number
APM-MAX-M21-NU-4R
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Panel Meters & Gauges, APM-MAX Series
Item #
APM-MAX-M21-NU-4R
VOLT, AMP, FREQ, PWR, MOD RTU
APM-MAX Series Information
The APM‑MAX combines the instant visual representation of an analog meter with the speed and accuracy of a digital meter for instant recognition and precision measurement. A large digital panel meter with a 81.5mm x 66mm display that features a two‑line display, programmable scale, alarm set‑points and color‑changing, full color RGB backlight for instant alerts.
The APM‑MAX Meter's unique display features dynamic backlight that can be tailored to alert the user when a critical parameter is out of range as well as flash and/or change color (or intensity). With a full‑color RGB display you can programme the backlight to be almost any colour and act as an immediate visual indication of critical parameters, improving performance monitoring as well as safety.
The APM‑MAX Meter's unique display features dynamic backlight that can be tailored to alert the user when a critical parameter is out of range as well as flash and/or change color (or intensity). With a full‑color RGB display you can programme the backlight to be almost any colour and act as an immediate visual indication of critical parameters, improving performance monitoring as well as safety.
Specifications
| Manufacturer Part Number | APM-MAX-M21-NU-4R |
|---|---|
| Manufacturer | Trumeter |
| Product Series | APM-MAX |
| Family Series | Trumeter Panel Meters & Gauges, APM-MAX Series |
| Description | VOLT, AMP, FREQ, PWR, MOD RTU |
| Type | AC Amps, AC Volts, DC Amps, DC Volts, Hertz |
| Max Input Signal | 400 Hz, 5 A, 600 V |
| Display Type | Negative LCD |
| Display Digits | 4 |
| Power Supply | 100-240 VAC |
| Nominal Voltage | 120 VAC, 208 VAC, 240 VAC |
| Nominal Size | 68 mm |
| Alarm Indicators | 2 LCD |
| Analog Output | 0-20 mA, 4-20 mA |
| Communication | RS-232, RS-485 |
| Accuracy | 0.1 % |
| Operating Temperature | 14-140 °F |
| NEMA Rating | NEMA 12, NEMA 4 |
| Protection Rating | IP65 |
| Approvals | CE, cUL, UL |
| Comments | USB Port for Custom User Settings, Negative Display Color Scheme |
| H x W x D | 1.26 " x 4.35 " x 4.40 " |
| Net Weight | 0.82 lbs |
| Gross Weight | 0.955 lbs |
