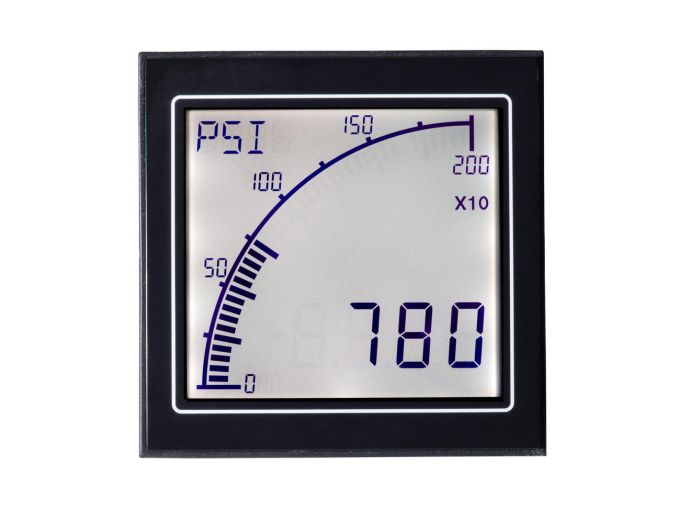

Name: APM-PROC-APO Trumeter Panel Meters & Gauges, APM Series
Brand: Trumeter
SKU: APM-PROC-APO-TRUM
Price: 132.51 USD
Availability: InStock

Specifications

Specifications
Manufacturer Part Number	APM-PROC-APO
Manufacturer	Trumeter
Product Series	APM
Family Series	Trumeter Panel Meters & Gauges, APM Series
Type	AC Amps, DC Volts
Max Input Signal	Process 0-10 V, Process 4-20 mA
Display Type	Positive LCD
Display Digits	4
Power Supply	12-24 VAC/DC
Nominal Voltage	12 VAC, 24 VAC, 12 VDC, 24 VDC
Nominal Size	68 mm
Relays	0
Alarm Indicators	2 LCD
Analog Output	4-20 mA
Communication	None
Accuracy	0.1 %
Operating Temperature	14-140 °F
Protection Rating	IP65
Approvals	cUL, UL
Comments	Positive Display Color Scheme
H x W x D	2.90 " x 2.25 " x 3.25 "
Net Weight	0.34 lbs
Gross Weight	0.43 lbs

Description

Panel Meters & Gauges, APM Series

Item #

APM-PROC-APO

PROCESS POS LCD WITH OUTPUTS

APM Series Information

Separate Display Area for Annunciations, Custom Messages, and Alarms
User Adjustable Backlight Brightness and Color
Two Independent Alarm Set‑Points
40 Segment Bar Graph Display
Large 4 Digit Display

The Trumeter APM is the most visible, easy to use, multi‑format, programmable panel meter on the market; providing you with the highest level of accuracy and an immediate visual indication of your critical parameters. The APM has been specifically designed for engineers requiring a more effective way of monitoring and displaying data. The Trumeter APM is a cost‑effective alternative to the traditional moving coil and expensive digital panel meters.
