Specifications
| Country of Origin | Malaysia |
|---|---|
| Manufacturer Part Number | APM-RATE-APO |
| Manufacturer | Trumeter |
| Product Series | APM |
| Family Series | Trumeter Panel Meters & Gauges, APM Series |
| Type | RPM |
| Max Input Signal | 36 V |
| Display Type | Positive LCD |
| Display Digits | 4 |
| Power Supply | 12-24 VDC |
| Nominal Voltage | 12 VDC, 24 VDC |
| Nominal Size | 72 mm |
| Alarm Indicators | User Configurable |
| Analog Output | 4-20 mA |
| Communication | USB |
| Accuracy | 0.01 % |
| Operating Temperature | 14-140 °F |
| NEMA Rating | NEMA 4X, NEMA 12 |
| Protection Rating | IP65 |
| Approvals | CE, cUL, UL |
| Comments | Positive Display Color Scheme |
| H x W x D | 2.30 " x 2.90 " x 3.25 " |
| Net Weight | 0.345 lbs |
| Gross Weight | 0.44 lbs |
Description

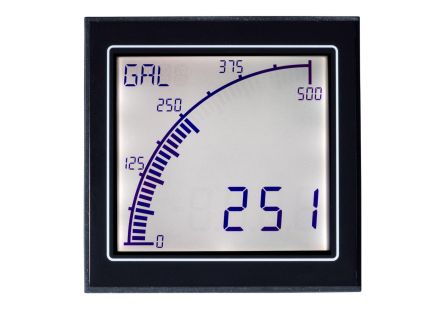

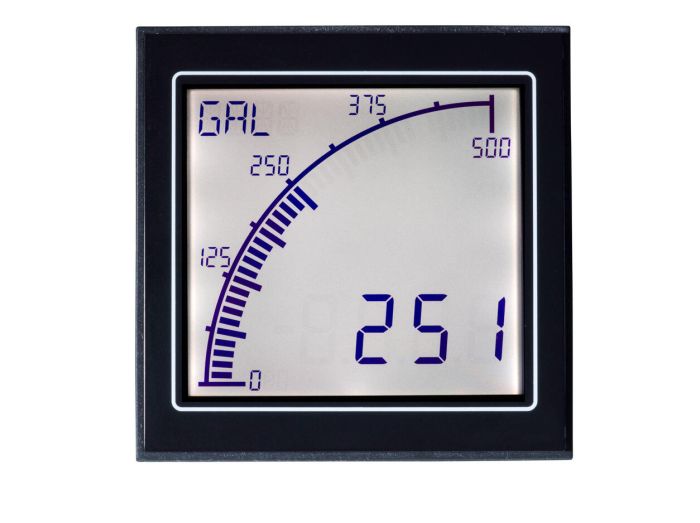

Panel Meters & Gauges, APM Series
Item #
APM-RATE-APO
RATEMETER POS LCD WITH OUTPUTS
APM Series Information
- Separate Display Area for Annunciations, Custom Messages, and Alarms
- User Adjustable Backlight Brightness and Color
- Two Independent Alarm Set‑Points
- 40 Segment Bar Graph Display
- Large 4 Digit Display
The Trumeter APM is the most visible, easy to use, multi‑format, programmable panel meter on the market; providing you with the highest level of accuracy and an immediate visual indication of your critical parameters. The APM has been specifically designed for engineers requiring a more effective way of monitoring and displaying data. The Trumeter APM is a cost‑effective alternative to the traditional moving coil and expensive digital panel meters.
