APM-TEMP-APO
Trumeter Panel Meters & Gauges, APM Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

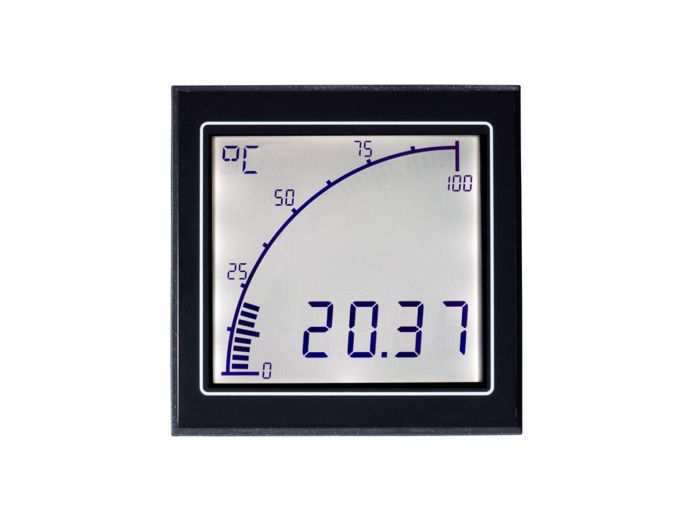

APM-TEMP-APO Trumeter Panel Meters & Gauges, APM Series
APM Temperature Meter Positive
MFG Item Number
APM-TEMP-APO
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Panel Meters & Gauges, APM Series
Item #
APM-TEMP-APO
APM Temperature Meter Positive
APM Series Information
- Separate Display Area for Annunciations, Custom Messages, and Alarms
- User Adjustable Backlight Brightness and Color
- Two Independent Alarm Set‑Points
- 40 Segment Bar Graph Display
- Large 4 Digit Display
The Trumeter APM is the most visible, easy to use, multi‑format, programmable panel meter on the market; providing you with the highest level of accuracy and an immediate visual indication of your critical parameters. The APM has been specifically designed for engineers requiring a more effective way of monitoring and displaying data. The Trumeter APM is a cost‑effective alternative to the traditional moving coil and expensive digital panel meters.
Specifications
| Manufacturer Part Number | APM-TEMP-APO |
|---|---|
| Manufacturer | Trumeter |
| Product Series | APM |
| Family Series | Trumeter Panel Meters & Gauges, APM Series |
| Description | APM Temperature Meter Positive |
| Type | Degrees Celsius, Degrees Fahrenheit |
| Max Input Signal | Thermocouple |
| Display Type | Positive LCD |
| Display Digits | 4 |
| Power Supply | 12-24 VAC/DC |
| Nominal Voltage | 12 VAC, 12 VDC, 24 VAC, 24 VDC |
| Nominal Size | 68 mm |
| Alarm Indicators | 2 LCD |
| Analog Output | 4-20 mA |
| Accuracy | 0.25 % |
| Operating Temperature | 14-140 °F |
| Protection Rating | IP65 |
| Approvals | CE, cULus |
| H x W x D | 2.35 " x 2.95 " x 3.30 " |
| Net Weight | 0.345 lbs |
| Gross Weight | 0.44 lbs |
